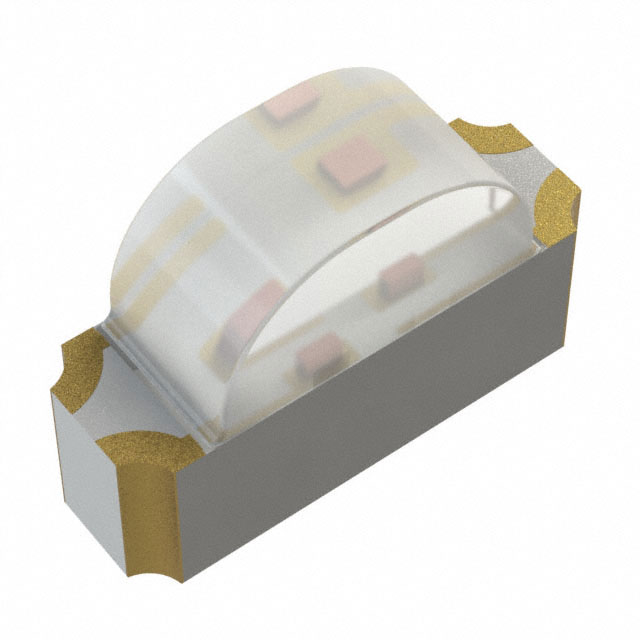

HSMF-C143
ActiveBroadcom Limited
LED AMBER/GREEN CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSMF-C143
ActiveBroadcom Limited
LED AMBER/GREEN CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMF-C143 |
|---|---|
| Color | Green, Amber |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 103 mcd |
| Millicandela Rating [custom] | 33 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2 V |
| Wavelength - Dominant | 570 nm, 589 nm |
| Wavelength - Peak | 571 nm, 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.58 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.58 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.35 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
Description
General part information
HSMF-C143 Series
Amber, Green 589nm Amber, 570nm Green LED Indication - Discrete 2V Amber, 2V Green 4-SMD
