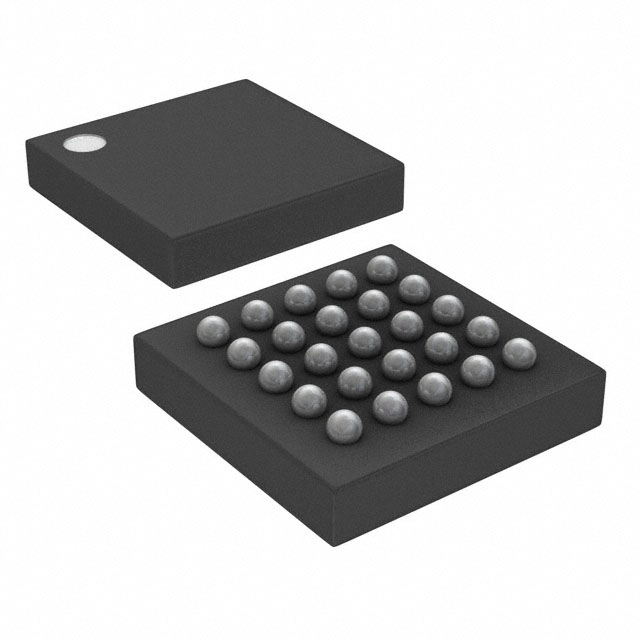

RT9469WSC

Active

Richtek USA Inc.

IC BATT CHG LI-ION 1CELL 25WLCSP

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC BATT CHG LI-ION 1CELL 25WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	RT9469WSC

Battery Chemistry	Lithium Ion/Polymer
Charge Current - Max [Max]	2.275 A
Fault Protection	Over Current, Reverse Battery, Over Temperature, Over Voltage, Short Circuit
Interface	I2C
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	25-UFBGA, WLCSP
Programmable Features	Current, Voltage
Supplier Device Package	25-WLCSP
Supplier Device Package [x]	2.52
Supplier Device Package [y]	2.52
Voltage - Supply (Max) [Max]	9 V

Part	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Programmable Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Max) [Max]	Number of Cells	Battery Chemistry	Mounting Type	Charge Current - Max [Max]	Interface	Package / Case	Fault Protection
Richtek USA Inc. RT9469WSC	25-WLCSP	2.52	2.52	Current Voltage	85 °C	-40 °C	9 V	1	Lithium Ion/Polymer	Surface Mount	2.275 A	I2C	25-UFBGA WLCSP	Over Current Over Temperature Over Voltage Reverse Battery Short Circuit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Charger IC Lithium Ion/Polymer 25-WLCSP (2.52x2.52)
