WI-M-14-25-0

Active

Mueller Electric Co

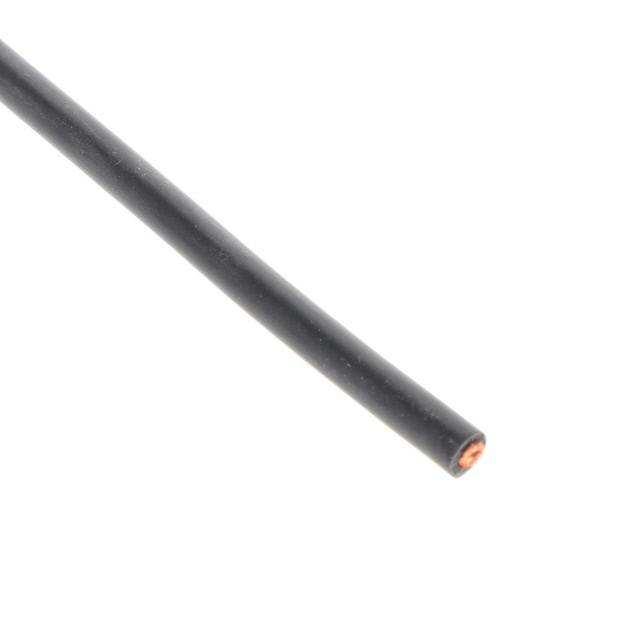

TEST LEAD WIRE, 14AWG, BLACK, 7.62M ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST LEAD WIRE, 14AWG, BLACK, 7.62M ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	WI-M-14-25-0

Conductor Material	Copper
Conductor Strand [custom]	420
Conductor Strand [custom]	0.0031 in
Jacket (Insulation) Diameter [diameter]	4.7 mm
Jacket (Insulation) Diameter [diameter]	0.185 in
Jacket Color	Black
Length [x]	25 ft
Length [x]	7.62 m
Operating Temperature	200 °C
Voltage	1100 V
Wire Gauge	13.5 AWG

Part	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Voltage	Length	Length	Jacket Color	Operating Temperature	Length [x]	Length [x]
Mueller Electric Co WI-M-14-10-0	13.5 AWG	180 °C	-40 °C	4.7 mm	0.185 in	420	0.0031 in	Copper	1100 V	10 ft	3.05 m	Black
Mueller Electric Co WI-M-14-25-2	13.5 AWG			4.7 mm	0.185 in	420	0.0031 in	Copper	1100 V			Red	200 °C	25 ft	7.62 m
Mueller Electric Co WI-M-14-10-2	13.5 AWG			4.7 mm	0.185 in	420	0.0031 in	Copper	1100 V	10 ft	3.05 m	Red	200 °C
Mueller Electric Co WI-M-14-25-0	13.5 AWG			4.7 mm	0.185 in	420	0.0031 in	Copper	1100 V			Black	200 °C	25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 AWG Test Lead Wire 420/0.0031" Black 1100V 25.00' (7.62m)
