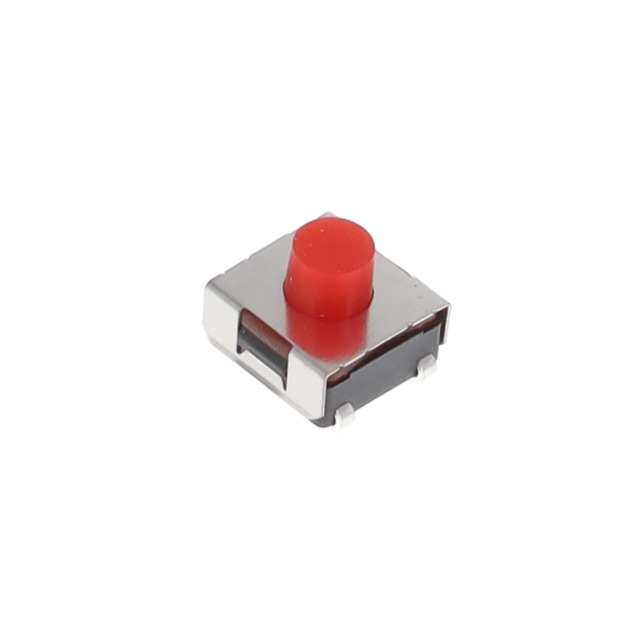

TSJW-5.2-260-TR

Active

E-Switch

MICROSWITCH TACT; POS: 2; 0.05A/12VDC; SMT; NONE; 2.55N; 2.35MM

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; POS: 2; 0.05A/12VDC; SMT; NONE; 2.55N; 2.35MM

Technical Specifications

Parameters and characteristics for this part

Specification	TSJW-5.2-260-TR

Actuator Height off PCB, Vertical	5.2 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Washable
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6.3 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Termination Style	J Lead

Part	Switch Function	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Actuator Type	Termination Style	Outline [x]	Outline [y]	Mounting Type	Actuator Orientation	Circuit	Contact Rating @ Voltage	Features	Actuator Material	Operating Force
E-Switch TSJW-5.2-180-TR	Off-Mom	5.2 mm	-20 C	70 °C	Non-Illuminated	Standard	J Lead	6.3 mm	6.2 mm	Surface Mount	Top Actuated	SPST-NO	0.05 A 12 VDC	Washable	Silicone Rubber
E-Switch TSJW-5.2-260-B	Off-Mom	5.2 mm	-20 C	70 °C	Non-Illuminated	Standard	J Lead	6.3 mm	6.2 mm	Surface Mount	Top Actuated	SPST-NO	0.05 A 12 VDC	Washable	Silicone Rubber
E-Switch TSJW-5.2-260-TR	Off-Mom	5.2 mm	-20 C	70 °C	Non-Illuminated	Standard	J Lead	6.3 mm	6.2 mm	Surface Mount	Top Actuated	SPST-NO	0.05 A 12 VDC	Washable	Silicone Rubber	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
