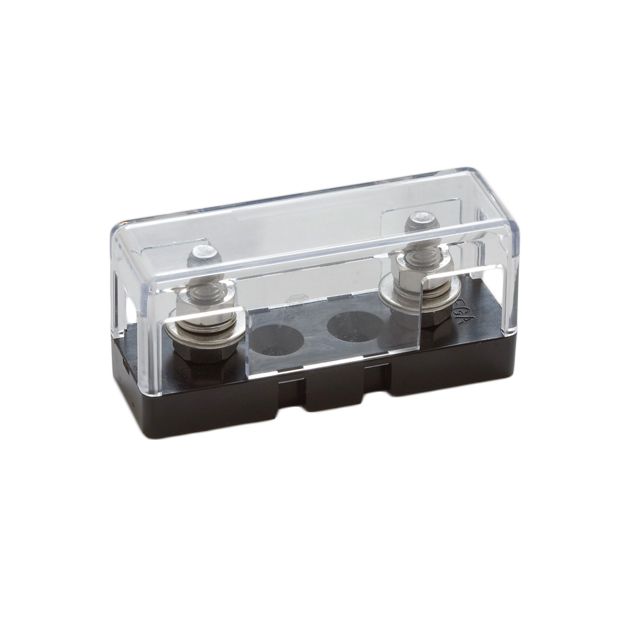

BLC-08-GTA

Active

OptiFuse

FUSE BLOCK-LIMITER (MGGA), 500A

Search across all available documentation for this part.

Active

OptiFuse

FUSE BLOCK-LIMITER (MGGA), 500A

Technical Specifications

Parameters and characteristics for this part

Specification	BLC-08-GTA

Contact Material	Steel
Current Rating (Amps)	500 A
For Use With/Related Products	MGGA, MGGA-B
Fuse Size [x]	2.7 in
Fuse Size [x]	68.58 mm
Fuse Size [y]	19.05 mm
Fuse Size [y]	0.75 in
Fuse Size [z]	0.42 in
Fuse Size [z]	10.67 mm
Fuse Type	Bolt Down
Fuseholder Type	Block
Mounting Type	Chassis Mount
Number of Circuits	1
Orientation	Horizontal and Vertical
Termination Style	Bolt Down
Voltage	500 V

Part	Termination Style	Number of Circuits	Current Rating (Amps)	Fuse Size [y]	Fuse Size [z]	Fuse Size [x]	Fuse Size [x]	Fuse Size [y]	Fuse Size [z]	Fuse Type	For Use With/Related Products	Voltage	Orientation	Mounting Type	Fuseholder Type	Contact Material
OptiFuse BLC-08-GTA	Bolt Down	1	500 A	19.05 mm	0.42 in	2.7 in	68.58 mm	0.75 in	10.67 mm	Bolt Down	MGGA MGGA-B	500 V	Horizontal and Vertical	Chassis Mount	Block	Steel
OptiFuse BLC-08-GT	Bolt Down	1	500 A	19.05 mm	0.42 in	2.7 in	68.58 mm	0.75 in	10.67 mm	Bolt Down	MGGA MGGA-B	500 V	Horizontal and Vertical	Chassis Mount	Block	Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.90

General part information

Fuse Block 500 A 500V 1 Circuit Bolt Down Chassis Mount
