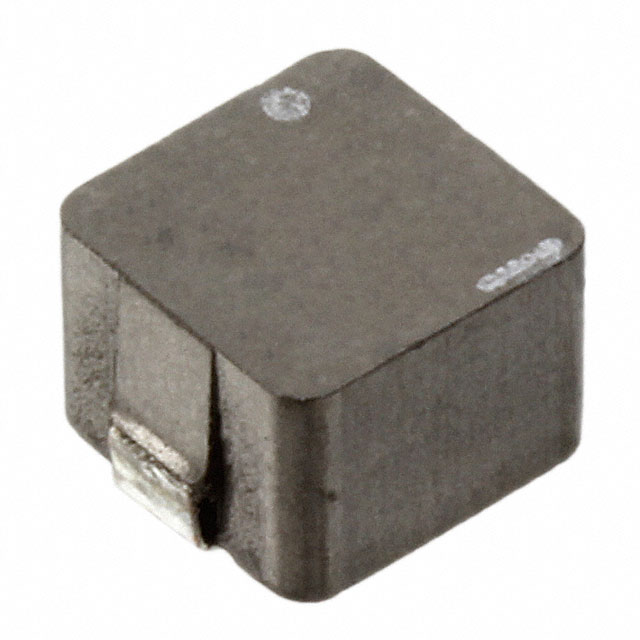

MPC0750LR68C

Active

KEMET

SURFACE MOUNT POWER INDUCTOR, MPC SERIES, 680 NH, 20%, SHIELDED, 2200 OHM, 18 A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

SURFACE MOUNT POWER INDUCTOR, MPC SERIES, 680 NH, 20%, SHIELDED, 2200 OHM, 18 A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Material - Core	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Inductance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Current - Saturation (Isat)
KEMET MPC0750LR60C	Ferrite	2.3 mOhm	17 A	2-SMD J-Lead	100 kHz	6.7 mm	8 mm	0.264 in	0.315 "	20 %	600 nH	Surface Mount	-20 C	120 °C	0.197 in	5 mm	Shielded	19 A
KEMET MPC0750LR68C	Ferrite	2.2 mOhm	18 A	2-SMD J-Lead	100 kHz	6.7 mm	8 mm	0.264 in	0.315 "	20 %	0.68 µH	Surface Mount	-20 C	120 °C	0.197 in	5 mm	Shielded	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

680 nH Shielded Inductor 18 A 2.2mOhm Max 2-SMD, J-Lead
