AT-FM-10K
ActiveBANNER ENGINEERING
SAFETY RELAY, 24 VAC/VDC, DPST-NO, DUO-TOUCH SG SERIES, DIN RAIL, 6 A, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
AT-FM-10K
ActiveBANNER ENGINEERING
SAFETY RELAY, 24 VAC/VDC, DPST-NO, DUO-TOUCH SG SERIES, DIN RAIL, 6 A, SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-FM-10K |
|---|---|
| Coil Voltage | 24 VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator |
| Mounting Type | DIN Rail |
| Operate Time | 35 ms |
| Switching Voltage | 250 VAC, 24 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AT-FM-10 Series

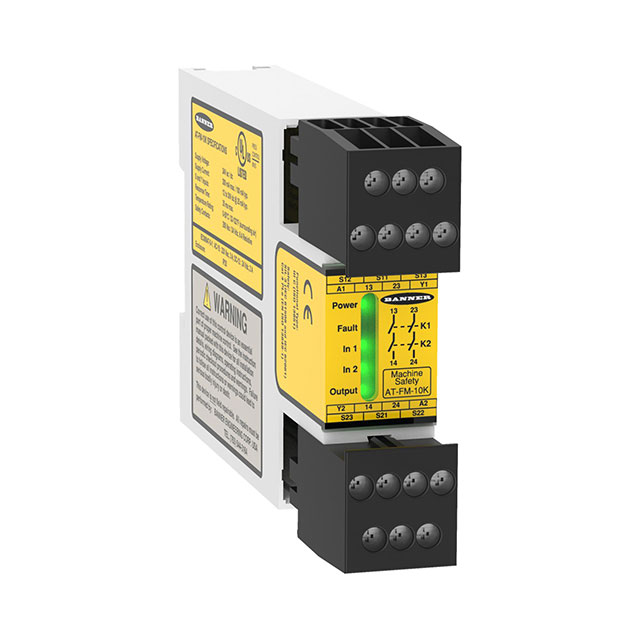

The AT-FM-10K is a Two-hand Control Module with SPST-NO, SPST-NC contact and screw terminals. It features monitors two STB self-checking optical touch buttons or two mechanical push buttons. DIN-rail-mountable 22.5mm wide housing with removable terminal blocks.
