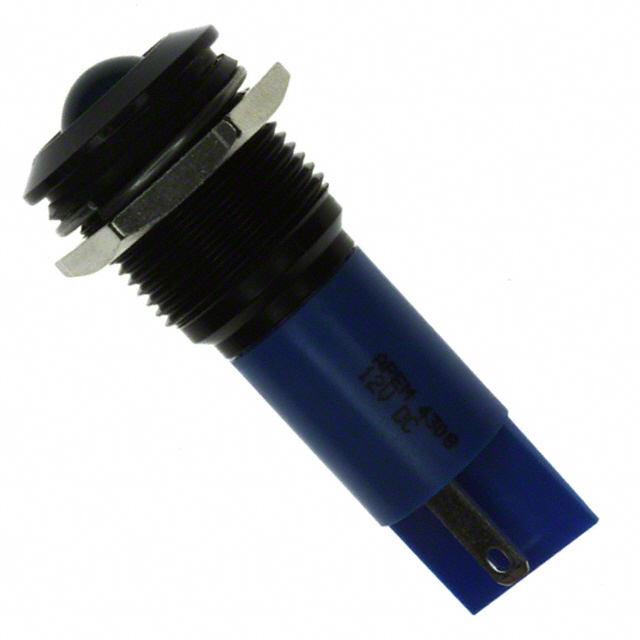

Q16P1BXXB12E
ActiveAPEM
INDICATOR 12V 16MM PROMINENT BLU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q16P1BXXB12E
ActiveAPEM
INDICATOR 12V 16MM PROMINENT BLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q16P1BXXB12E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 540 mcd |
| Panel Cutout Dimensions | 0.63 in |
| Panel Cutout Dimensions | 16 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 18.58 | |
Description
General part information
Q16P1BXXB Series
LED Panel Indicator Blue Diffused 100° 12V 20mA Quick Connect - 0.110" (2.8mm)
