AX01R140HAYBR600

Active

JAE Electronics

CONN RIGID SIDE R/A 140 POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN RIGID SIDE R/A 140 POS

Technical Specifications

Parameters and characteristics for this part

Specification	AX01R140HAYBR600

Connector Type	Outer Shroud Contacts, Plug
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	6.6 mm
Height Above Board	0.26 "
Mounting Type	Surface Mount, Right Angle
Number of Positions	140
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Contact Finish	Number of Rows	Mounting Type	Connector Type	Mated Stacking Heights
JAE Electronics AX01R140HAYBR600	0.64 mm	0.025 in	6.6 mm	0.26 "	4 Áin	0.1 Ám	140	Board Guide Solder Retention	Gold	2	Surface Mount Right Angle	Outer Shroud Contacts Plug
JAE Electronics AX01R140VADBR500	0.64 mm	0.025 in	8.6 mm	0.339 in	4 Áin	0.1 Ám	140	Board Guide Solder Retention	Gold	2	Surface Mount	Outer Shroud Contacts Plug	10 mm 16 mm 22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	600	$ 6.31

General part information

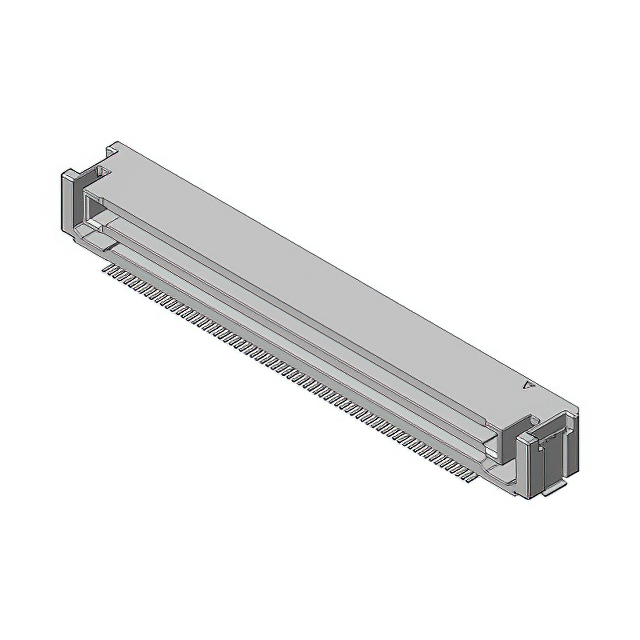

140 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
