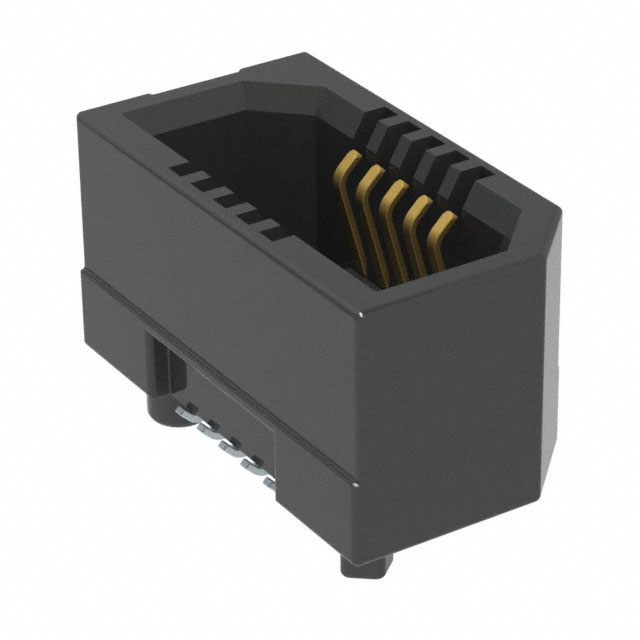

ER8-10S-0.8SV-5H
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ER8-10S-0.8SV-5H
ActiveHirose Electric USA, Inc.
CONN RCPT 10POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ER8-10S-0.8SV-5H |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 0.211 in |
| Height Above Board | 5.35 mm |
| Mated Stacking Heights | 10 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.70 | |
| 10 | $ 2.45 | |||
| 25 | $ 2.32 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.16 | |||
| Digi-Reel® | 1 | $ 2.70 | ||
| 10 | $ 2.45 | |||
| 25 | $ 2.32 | |||
| 50 | $ 2.27 | |||
| 100 | $ 2.16 | |||
| Tape & Reel (TR) | 475 | $ 1.67 | ||
| 950 | $ 1.56 | |||
| 1425 | $ 1.50 | |||
| 2375 | $ 1.42 | |||
| 3325 | $ 1.38 | |||
| 4750 | $ 1.33 | |||
Description
General part information
ER8-10S Series
10 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
