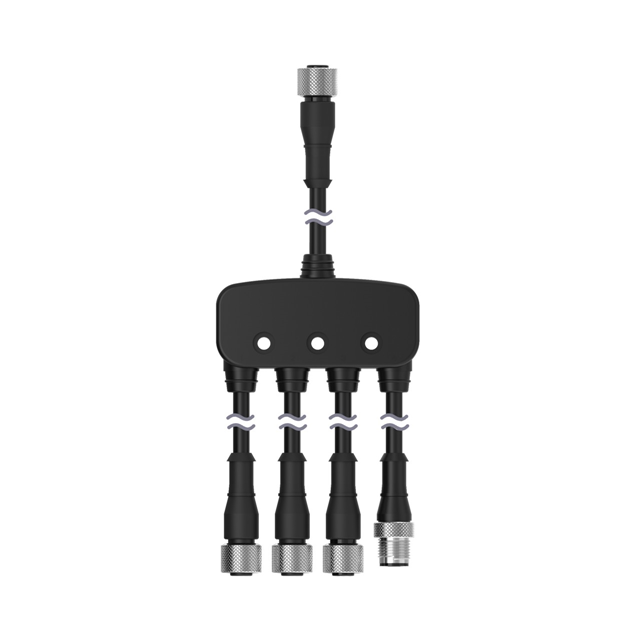

CSM4-M1281M1251M1281
ActiveBANNER ENGINEERING
EZ-SCREEN LS, ACCESSORY MUTING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSM4-M1281M1251M1281
ActiveBANNER ENGINEERING
EZ-SCREEN LS, ACCESSORY MUTING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSM4-M1281M1251M1281 |
|---|---|
| 1st Connector Gender | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 12, 8 positions, 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 1st Connector Type | Plug (3) |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 8 |
| 2nd Connector Number of Positions Loaded | 7 |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Y-Adapter on One End |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round - Split |
| Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Length [x] | 2 ' |
| Length [x] | 609.6 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CSM4-M Series
Circular Cable Assembly Unshielded 2.00' (609.60mm)
