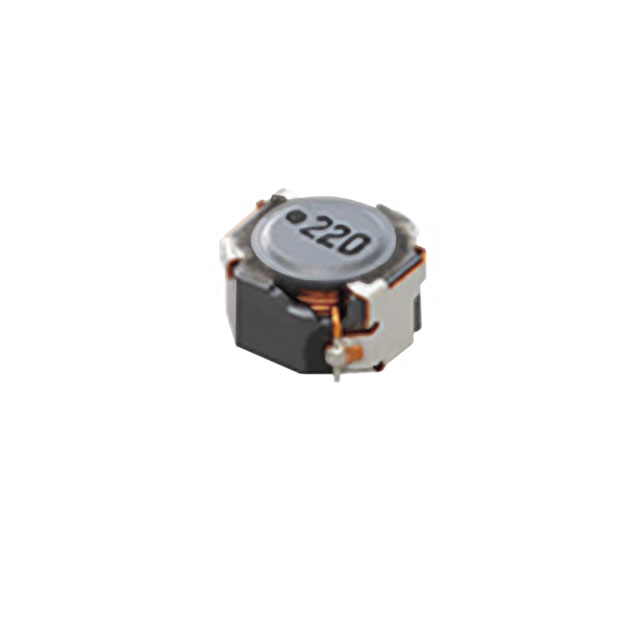

MDH7045C-151MA=P3

Active

Murata Power Solutions Inc.

FIXED IND 150UH 600MA 430MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDH7045C-151MA=P3

Active

Murata Power Solutions Inc.

FIXED IND 150UH 600MA 430MOHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDH7045C-151MA=P3

Current - Saturation (Isat)	640 mA
Current Rating (Amps)	600 mA
DC Resistance (DCR)	430 mOhm
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Inductance	150 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.291 "
Size / Dimension [x]	7.4 mm
Size / Dimension [y]	0.276 in
Size / Dimension [y]	7 mm
Tolerance	20 %
Type	Wirewound, Drum Core

MDH7045C Series

Part	Material - Core	Inductance	Package / Case	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Mounting Type	Inductance Frequency - Test	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Tolerance	Ratings
Murata Power Solutions Inc. MDH7045C-3R3NB=P3	Ferrite	3.3 µH	Nonstandard	3.4 A	0.276 in	7 mm	0.291 "	7.4 mm	16 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	5 A	-55 °C	150 °C	Drum Core Wirewound	30 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-470MA=P3	Ferrite	47 µH	Nonstandard	1.1 A	0.276 in	7 mm	0.291 "	7.4 mm	130 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	1.1 A	-55 °C	150 °C	Drum Core Wirewound	20 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-471MA=P3	Ferrite		Nonstandard	350 mA	0.276 in	7 mm	0.291 "	7.4 mm	1.2 Ohm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	360 mA	-55 °C	150 °C	Drum Core Wirewound	20 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-2R2NB=P3	Ferrite	2.2 µH	Nonstandard	4.1 A	0.276 in	7 mm	0.291 "	7.4 mm	13 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	5.8 A	-55 °C	150 °C	Drum Core Wirewound	30 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-330MA=P3	Ferrite	33 µH	Nonstandard	1.3 A	0.276 in	7 mm	0.291 "	7.4 mm	97 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	1.4 A	-55 °C	150 °C	Drum Core Wirewound	20 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-6R8NB=P3	Ferrite	6.8 µH	Nonstandard	2.8 A	0.276 in	7 mm	0.291 "	7.4 mm	22 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	3.4 A	-55 °C	150 °C	Drum Core Wirewound	30 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-1R5NB=P3	Ferrite	1.5 µH	Nonstandard	4.3 A	0.276 in	7 mm	0.291 "	7.4 mm	10 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	7.1 A	-55 °C	150 °C	Drum Core Wirewound	30 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-331MA=P3	Ferrite	330 µH	Nonstandard	490 mA	0.276 in	7 mm	0.291 "	7.4 mm	800 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	420 mA	-55 °C	150 °C	Drum Core Wirewound	20 %	AEC-Q200
Murata Power Solutions Inc. MDH7045C-151MA=P3	Ferrite	150 µH	Nonstandard	600 mA	0.276 in	7 mm	0.291 "	7.4 mm	430 mOhm	Surface Mount	100 kHz	Shielded	0.189 "	4.8 mm	640 mA	-55 °C	150 °C	Drum Core Wirewound	20 %	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.51
		10	$ 1.27
		25	$ 1.16
		50	$ 1.09
		100	$ 0.90
		250	$ 0.83
		500	$ 0.79
	Digi-Reel®	1	$ 1.51
		10	$ 1.27
		25	$ 1.16
		50	$ 1.09
		100	$ 0.90
		250	$ 0.83
		500	$ 0.79
	Tape & Reel (TR)	1000	$ 0.67
		2000	$ 0.62
		3000	$ 0.59
		5000	$ 0.56

Description

General part information

MDH7045C Series

150 µH Shielded Drum Core, Wirewound Inductor 600 mA 430mOhm Nonstandard

Documents

Technical documentation and resources
