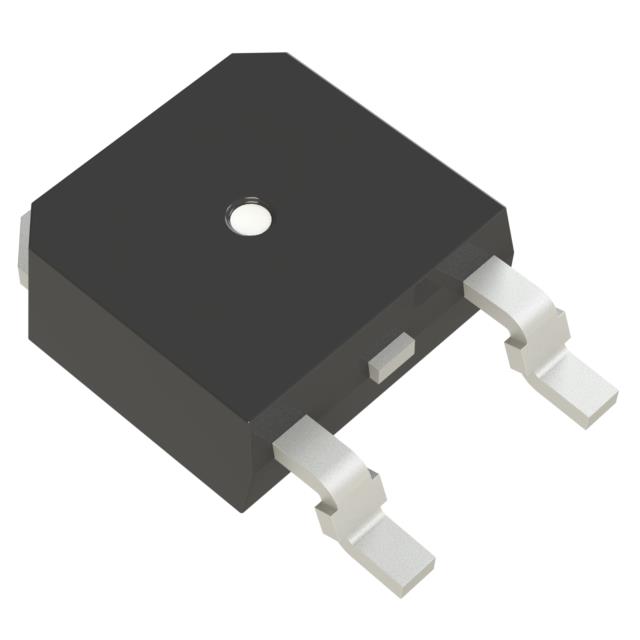

SURD8530T4G-VF01

Active

ON Semiconductor

DIODE SWITCHING 300V 5A 3-PIN(2+TAB) DPAK T/R AUTOMOTIVE AEC-Q101

Search across all available documentation for this part.

Active

ON Semiconductor

DIODE SWITCHING 300V 5A 3-PIN(2+TAB) DPAK T/R AUTOMOTIVE AEC-Q101

Technical Specifications

Parameters and characteristics for this part

Specification	SURD8530T4G-VF01

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Qualification	AEC-Q101
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DPAK
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.05 V

Power Rectifier, Ultra-Fast Recovery, Switch-mode, 5 A, 300 V

Part	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Supplier Device Package	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Mounting Type	Grade	Qualification
ON Semiconductor SURD8530T4G	1.05 V	50 ns	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	300 V	Standard	5 A	5 µA	175 ░C	-65 C	200 mA 500 ns	Surface Mount
ON Semiconductor SURD8530T4G-VF01	1.05 V	50 ns	DPAK	DPAK (2 Leads + Tab) SC-63 TO-252-3	300 V	Standard	5 A	5 µA	175 ░C	-65 C	200 mA 500 ns	Surface Mount	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The Ultrafast Rectifier is designed for use in switching power supplies, inverters and as free wheeling diodes.
