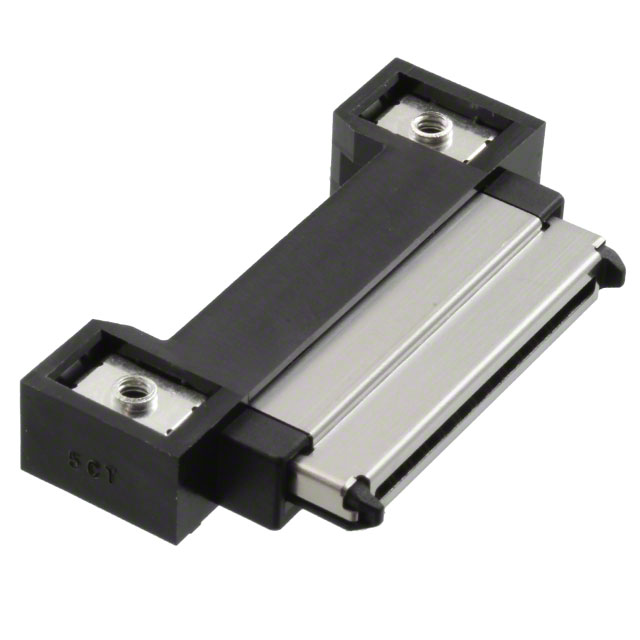

3560-24P-PG(57)

Obsolete

Hirose Electric USA, Inc.

TELECOM AND DATACOM CONNECTOR, 24 CONTACT(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

TELECOM AND DATACOM CONNECTOR, 24 CONTACT(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Connector Style	Contact Finish	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Hirose Electric USA, Inc. 3560-24S(30)
Hirose Electric USA, Inc. 3560-16P-PG(50)	16	Multi-Purpose	Plug	Gold	Solder	Surface Mount Right Angle	8 çin	0.203 çm
Hirose Electric USA, Inc. 3560-24SR(30)		Multi-Purpose	Receptacle	Gold	Solder	Surface Mount Right Angle	30 Áin	0.76 Ám	24
Hirose Electric USA, Inc. 3560-16SR(30)
Hirose Electric USA, Inc. 3560-24SR(31)		Multi-Purpose	Receptacle	Gold	Solder	Surface Mount Right Angle	30 Áin	0.76 Ám	24
Hirose Electric USA, Inc. 3560-24P-PG(57)		Multi-Purpose	Plug	Gold	Solder	Surface Mount Right Angle	30 Áin	0.76 Ám	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Multi-Purpose Plug Connector Solder Surface Mount, Right Angle

Technical documentation and resources

No documents available
