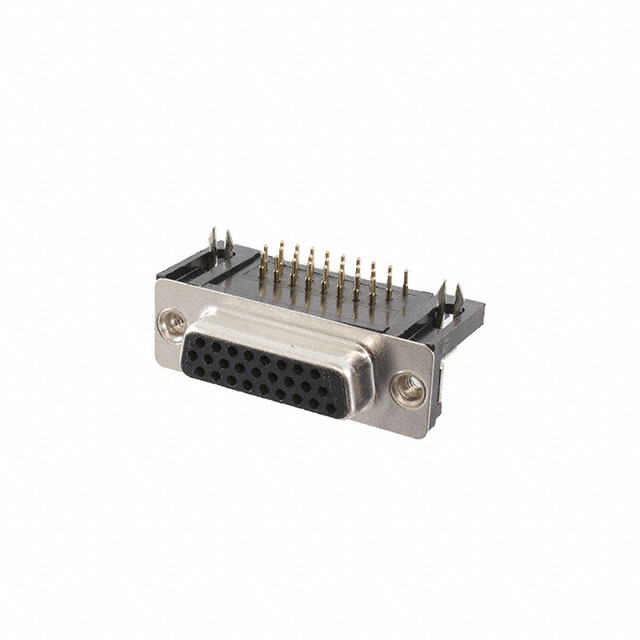

HDL26-SL-B

Active

Adam Tech

CONN D-SUB HD RCPT 26P R/A SLDR

Search across all available documentation for this part.

Active

Adam Tech

CONN D-SUB HD RCPT 26P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	HDL26-SL-B

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder
Voltage Rating	250 VAC

Part	Material Flammability Rating	Connector Type	Termination	Backset Spacing	Backset Spacing	Flange Feature	Current Rating (Amps)	Contact Finish	Dielectric Material	Contact Finish Thickness	Mounting Type	Voltage Rating	Shell Material, Finish	Contact Material	Number of Positions	Color	Connector Style	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout
Adam Tech HDL26-SL-B	UL94 V-0	Receptacle Female Sockets	Solder	8.89 mm	0.35 in	Housing/Shell (4-40)	3 A	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Flash	Through Hole Right Angle	250 VAC	Nickel Plated Steel	Phosphor Bronze	26	Black	D-Sub High Density	3	2	(DA A) High Density
