H2179-05

Obsolete

Harwin Inc.

CONN PC PIN CIRC 0.041DIA GOLD

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN PC PIN CIRC 0.041DIA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	H2179-05

Board Thickness	0.094 in
Board Thickness	2.39 mm
Contact Finish	Gold
Contact Material	Brass
Flange Diameter [diameter]	1.77 mm
Flange Diameter [diameter]	0.07 in
Insulation	Non-Insulated
Length - Above Flange [x]	7.62 mm
Length - Above Flange [x]	0.3 "
Length - Below Flange [x]	2.9 mm
Length - Below Flange [x]	0.114 in
Length - Overall	0.434 in
Length - Overall	11.03 mm
Mounting Hole Diameter [Max]	0.045 "
Mounting Hole Diameter [Max]	1.14 mm
Mounting Hole Diameter [Min]	0.041 in
Mounting Hole Diameter [Min]	1.04 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.041 in
Pin Size - Above Flange [diameter]	1.04 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Terminal Type	Contact Material	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Board Thickness	Board Thickness	Terminal Style	Length - Overall	Length - Overall	Mounting Type	Contact Finish	Insulation	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Flange [x]	Length - Above Flange [x]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]
Harwin Inc. H2179-05	PC Pin	Brass	0.045 "	1.14 mm	0.041 in	1.04 mm	0.094 in	2.39 mm	Single End	0.434 in	11.03 mm	Through Hole	Gold	Non-Insulated	2.9 mm	0.114 in	7.62 mm	0.3 "	Swage	1.77 mm	0.07 in	0.041 in	1.04 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

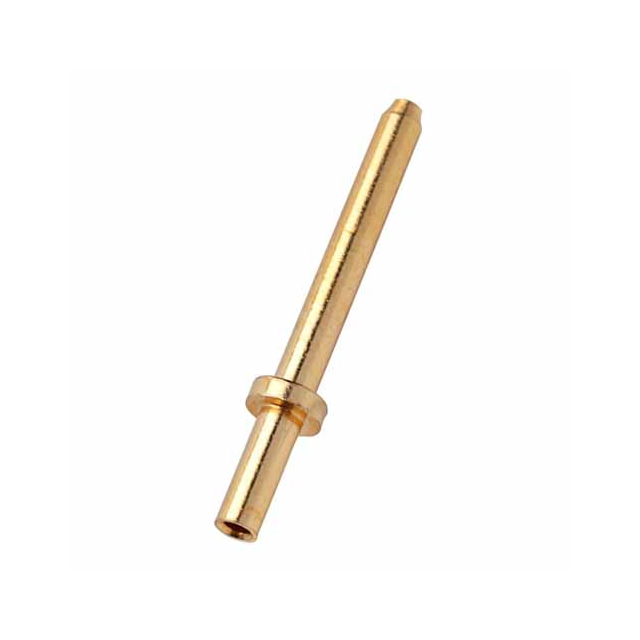

PC Pin Terminal Connector Through Hole Gold 0.041" (1.04mm) Dia
