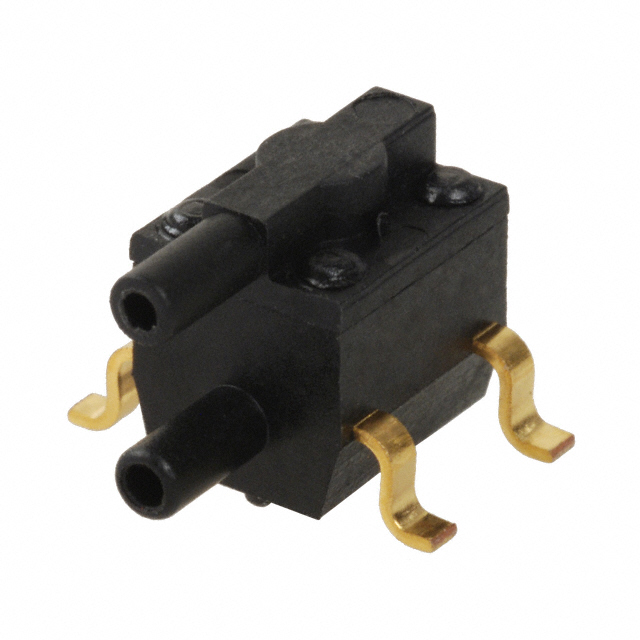

24PC01SMT

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSID 0.07" .045V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSID 0.07" .045V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Pressure	Operating Pressure	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Maximum Pressure	Maximum Pressure	Port Style	Accuracy	Port Size	Port Size	Port Size	Output Type	Output [Min]	Output	Output [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Applications
Honeywell Sensing and Productivity Solutions 24PC01SMTT	6.89 kPa	1 PSI	Surface Mount	12 V	2.5 V	Gull Wing	20 PSI	137.9 kPa	Barbless	0.4 %	Dual	0.07 "	1.88 mm	Wheatstone Bridge	0 mV	10 V	45 mV	4-SMD Module	85 °C	-40 °C	Differential
Honeywell Sensing and Productivity Solutions 24PC01SMT	6.89 kPa	1 PSI	Surface Mount	12 V	2.5 V	Gull Wing	20 PSI	137.9 kPa	Barbless	0.4 %	Dual	0.07 "	1.88 mm	Wheatstone Bridge	0 mV	10 V	45 mV	4-SMD Module	85 °C	-40 °C	Differential	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.07" (1.88mm) Tube, Dual 0 mV ~ 45 mV (10V) 4-SMD Module
