SN74ALS580BNSR

Unknown

Texas Instruments

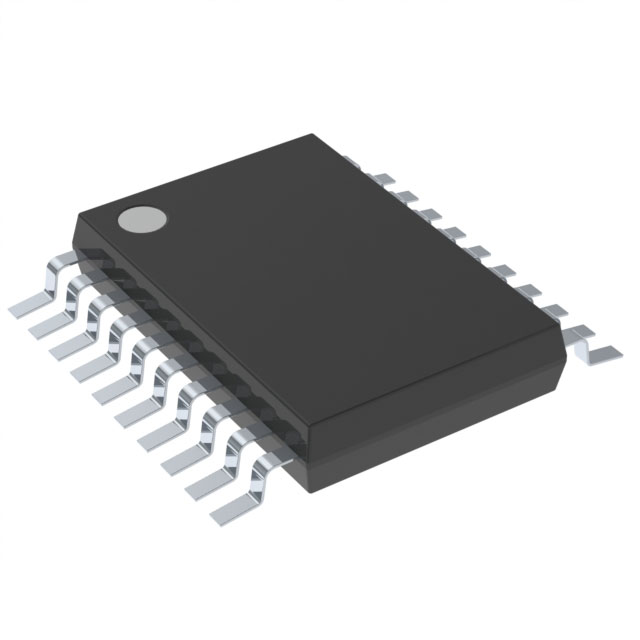

IC D-TYPE TRANSP SGL 8:8 20SO

Search across all available documentation for this part.

Unknown

Texas Instruments

IC D-TYPE TRANSP SGL 8:8 20SO

Technical Specifications

Parameters and characteristics for this part

Specification	SN74ALS580BNSR

Circuit [custom]	8
Circuit [custom]	8
Current - Output High, Low [custom]	24 mA
Current - Output High, Low [custom]	2.6 mA
Delay Time - Propagation	6 ns
Independent Circuits	1
Logic Type	D-Type Transparent Latch
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Type	Tri-State
Package / Case	20-SOIC
Package / Case	0.209 "
Package / Case	5.3 mm
Supplier Device Package	20-SO
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Logic Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit [custom]	Circuit [custom]	Mounting Type	Independent Circuits	Package / Case	Package / Case [y]	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Delay Time - Propagation	Supplier Device Package	Package / Case	Package / Case
Texas Instruments SN74ALS580BDWR	24 mA	2.6 mA	D-Type Transparent Latch	Tri-State	70 °C	0 °C	8	8	Surface Mount	1	20-SOIC	0.295 in	7.5 mm	4.5 V	5.5 V	6 ns	20-SOIC
Texas Instruments SN74ALS580BNSR	24 mA	2.6 mA	D-Type Transparent Latch	Tri-State	70 °C	0 °C	8	8	Surface Mount	1	20-SOIC			4.5 V	5.5 V	6 ns	20-SO	0.209 "	5.3 mm
Texas Instruments SN74ALS580BN3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 2.01

General part information

D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SO

Technical documentation and resources

No documents available
