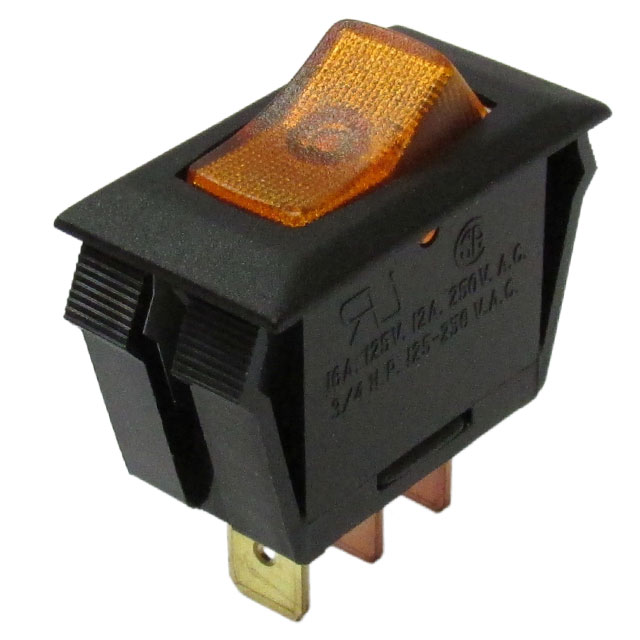

GRL-2011-1602
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRL-2011-1602
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRL-2011-1602 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Almond |
| Current Rating (Amps) | 16 A |
| Electrical Life | 25000 Steps |
| Illumination Type, Color | Neon, Almond |
| Illumination Voltage (Nominal) | 125 VAC |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 13.97 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 2.41 | |
Description
General part information
GRL-2011 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
