28564.6
ActiveConta-Clip, Inc.

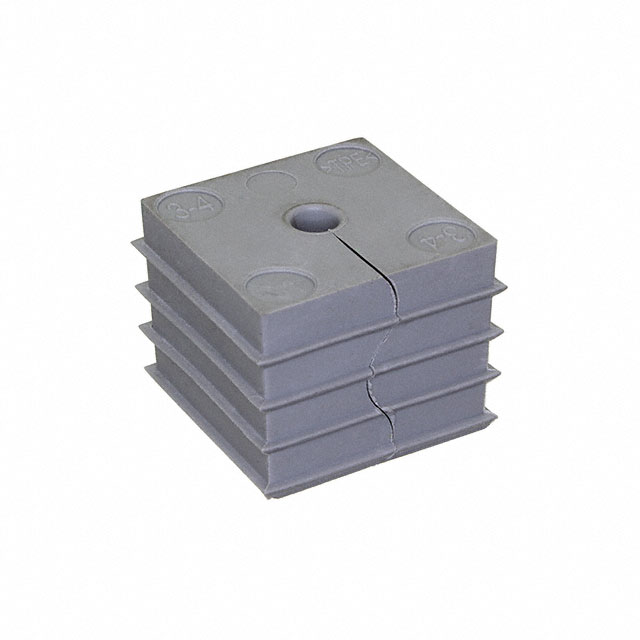

FRAME GROMMET SPLIT TPE GRAY
Deep-Dive with AI
Search across all available documentation for this part.
28564.6
ActiveConta-Clip, Inc.
FRAME GROMMET SPLIT TPE GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28564.6 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Gray |
| Diameter - Inside [Max] [diameter] | 4 mm |
| Diameter - Inside [Max] [diameter] | 0.157 in |
| Diameter - Inside [Min] [diameter] | 3 mm |
| Diameter - Inside [Min] [diameter] | 0.118 in |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 V-0 |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.10 | |
| 5 | $ 2.63 | |||
| 10 | $ 2.47 | |||
| 30 | $ 2.25 | |||
| 50 | $ 2.15 | |||
| 100 | $ 2.04 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.82 | |||
| 1000 | $ 1.75 | |||
Description
General part information
28564 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.118" ~ 0.157" (3.00mm ~ 4.00mm) Gray
Documents
Technical documentation and resources
No documents available
