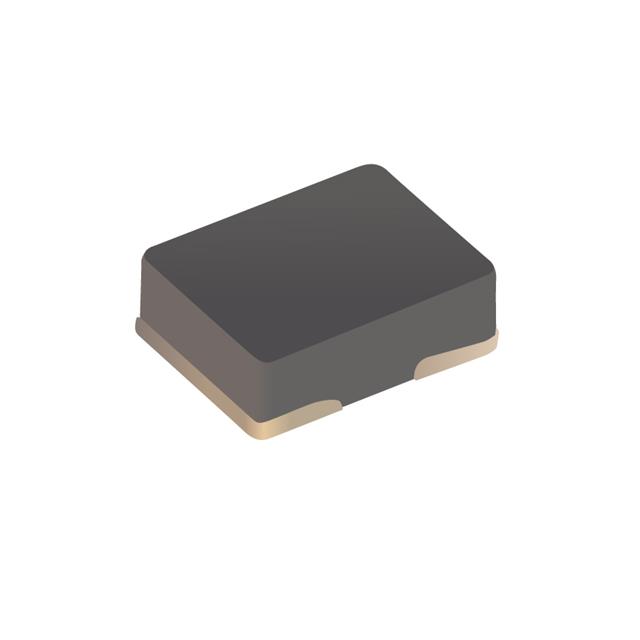

SRP3212A-R47M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 0.47UH 20% 100KHZ 3Q-FACTOR METAL ALLOY POWDER 7A 0.019OHM DCR 1210 AUTOMOTIVE AEC-Q200 T/R

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 0.47UH 20% 100KHZ 3Q-FACTOR METAL ALLOY POWDER 7A 0.019OHM DCR 1210 AUTOMOTIVE AEC-Q200 T/R

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Inductance	Current - Saturation (Isat)	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Current Rating (Amps)	Q @ Freq	Inductance Frequency - Test	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Shielding	Mounting Type	Frequency - Self Resonant	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. SRP3212A-3R3M	20 %	3.3 µH	3.4 A	1210	3225 Metric	1.2 mm	0.047 in	Flat Wire	3.1 A	5 100 kHz	100 kHz	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Metal	Shielded	Surface Mount	28 MHz
Bourns Inc. SRP3212A-4R7M	20 %	4.7 ÁH	2.8 A	1210	3225 Metric	1.2 mm	0.047 in	Flat Wire	2.2 A	5 100 kHz	100 kHz	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Metal	Shielded	Surface Mount	25 MHz	146 mOhm
Bourns Inc. SRP3212A-R47M	20 %	470 nH	8.2 A	1210	3225 Metric	1.2 mm	0.047 in	Flat Wire	7 A	3 100 kHz	100 kHz	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Metal	Shielded	Surface Mount	100 MHz		19 mOhm
Bourns Inc. SRP3212A-R68M	20 %	0.68 µH		1210	3225 Metric	1.2 mm	0.047 in	Flat Wire	6.2 A	5 100 kHz	100 kHz	AEC-Q200	3.2 mm	2.5 mm	0.126 in	0.098 in	Metal	Shielded	Surface Mount		24 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 nH Shielded Inductor 7 A 19mOhm Max 1210 (3225 Metric) Flat Wire
