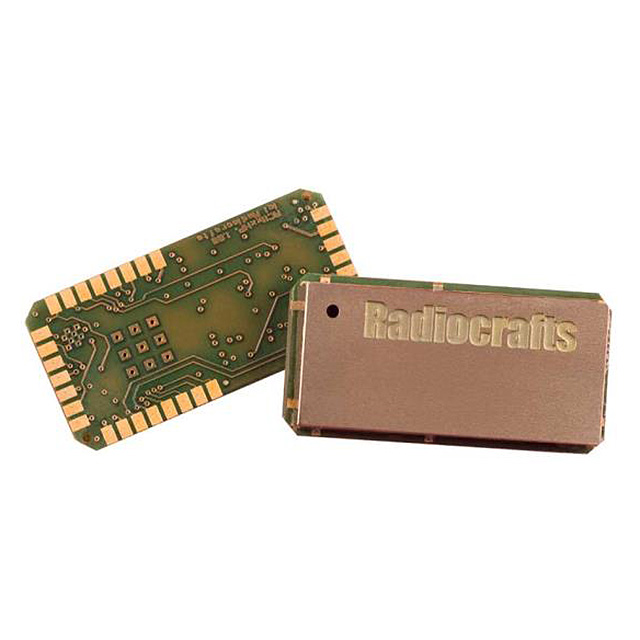

RC1692HP-SIG

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Search across all available documentation for this part.

Active

Radiocrafts AS

RF TXRX MOD ISM<1GHZ CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	RC1692HP-SIG

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	31 mA
Current - Transmitting	356 mA
Data Rate	600 bps
Frequency [Max]	928 MHz
Frequency [Min]	902 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Protocol	Sigfox
RF Family/Standard	General ISM < 1GHz
Sensitivity	-124 dBm
Serial Interfaces	UART
Utilized IC / Part	CC1190, CC1125
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.8 V

Part	Utilized IC / Part	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Min]	Frequency [Max]	Current - Receiving	Current - Transmitting	RF Family/Standard	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Rate	Package / Case	Antenna Type	Sensitivity
Radiocrafts AS RC1692HP-SIG	CC1125 CC1190	Sigfox	2.8 V	3.6 V	902 MHz	928 MHz	31 mA	356 mA	General ISM < 1GHz	UART	85 °C	-40 °C	Surface Mount	600 bps	Module	Antenna Not Included Castellation	-124 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Sigfox Transceiver Module 902MHz ~ 928MHz Antenna Not Included, Castellation Surface Mount
