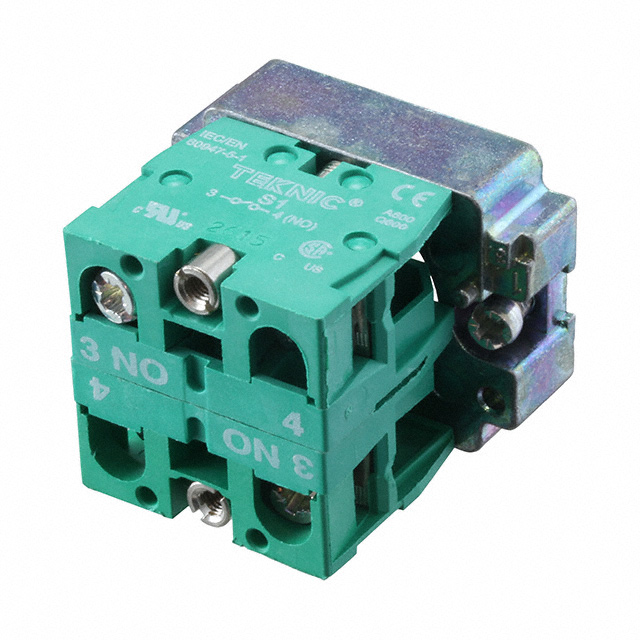

S1-20WB

Active

Altech Corporation

CONTACT BLOCK SPST-NOX2 10A 600V

Search across all available documentation for this part.

Active

Altech Corporation

CONTACT BLOCK SPST-NOX2 10A 600V

Technical Specifications

Parameters and characteristics for this part

Specification	S1-20WB

(Select First, Then Apply Filters) Compatible Series	22 mm
(Select First, Then Apply Filters) Compatible Series	Altech
Circuit	SPST-NO x 2
Contact Rating @ Voltage [x]	600 VAC, 10 A
Requires	Switch Body
Termination Style	Screw Terminal

Part	Circuit	(Select First, Then Apply Filters) Compatible Series	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage [x]	Termination Style	Requires
Altech Corporation S1-20WB	SPST-NO x 2	22 mm	Altech	10 A 600 VAC	Screw Terminal	Switch Body
Altech Corporation S1-S2-WB	SPST-NO + SPST-NC	22 mm	Altech	10 A 600 VAC	Screw Terminal	Switch Body

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO x 2 10A @ 600VAC

Technical documentation and resources

No documents available
