09155030901
ActiveHARTING Technology Group

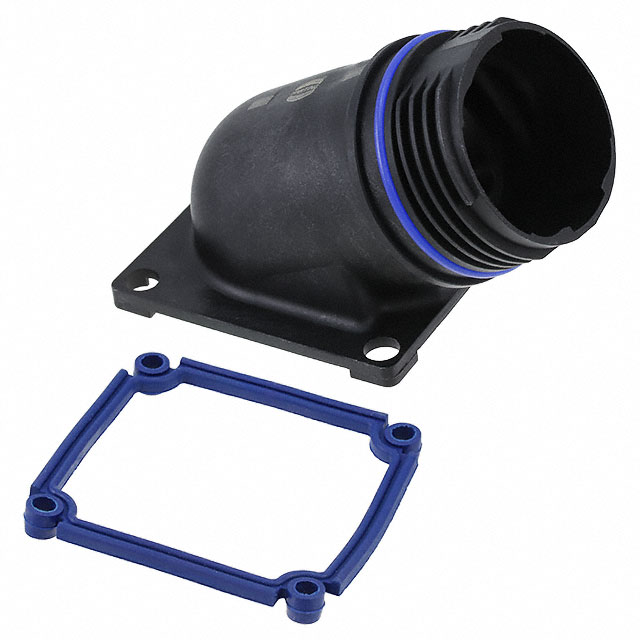

ENCLOSURE FOR CONNECTORS: CIRCULAR; IP67,IP6K9K; ANGLED; BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09155030901
ActiveHARTING Technology Group
ENCLOSURE FOR CONNECTORS: CIRCULAR; IP67,IP6K9K; ANGLED; BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09155030901 |
|---|---|
| Connector Type | Base - Panel Mount 90° |
| Housing Material | Polypropylene (PP) |
| Ingress Protection | IP69K, IP67 |
| Lock Location | Threaded |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 2.031 " |
| Size / Dimension [x] | 51.6 mm |
| Size / Dimension [y] | 1.713 in |
| Size / Dimension [y] | 43.5 mm |
| Size / Dimension [z] | 50.4 mm |
| Size / Dimension [z] | 1.984 in |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09155030 Series
Base - Panel Mount 90° Connector Bottom Entry IP67/IP69K - Dust Tight, Water Resistant, Waterproof
