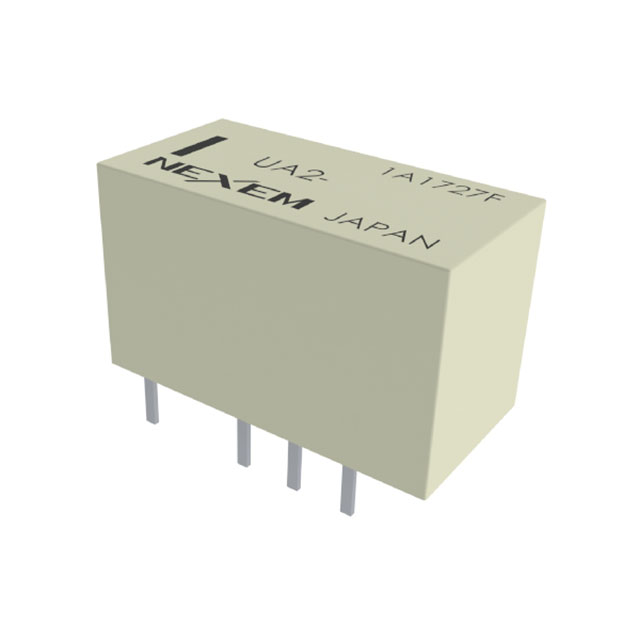

UA2-3NJ

Active

KEMET

RELAYTHROUGH-HOLE

Search across all available documentation for this part.

Active

KEMET

RELAYTHROUGH-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	UA2-3NJ

null

Part	Contact Material	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Must Release Voltage	Coil Current	Operate Time	Load - Max Switching	Coil Resistance	Release Time	Contact Form	Approval Agency	Must Operate Voltage	Contact Rating (Current)	Coil Type	Mounting Type	Relay Type
KEMET UA2-3NU	Gold Alloy Silver Alloy	220 VDC 250 VAC	85 °C	-40 °C	PC Pin	0.3 VDC	46.7 mA	2 ms	220 W 250 VA	64.3 Ohms	1 ms	DPDT (2 Form C)	CSA TUV UL	2.25 VDC	1 A	Non Latching	Through Hole	General Purpose
KEMET UA2-3NJ

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	47	$ 1.53

General part information

Relay

Technical documentation and resources

No documents available
