CONN D-SUB RCPT 15POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 15POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	15-006603

Backset Spacing	0.328 "
Backset Spacing	8.34 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets, Gasket
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

Part	Current Rating (Amps)	Contact Finish	Connector Type	Contact Finish Thickness	Dielectric Material	Number of Rows	Contact Type	Shell Material, Finish	Backset Spacing	Backset Spacing	Termination	Color	Flange Feature	Connector Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Voltage Rating	Ingress Protection	Material Flammability Rating	Mounting Type	Number of Positions	Shell Size, Connector Layout
Amphenol CONEC 15-006613	5 A	Gold	Receptacle Female Sockets	Flash	Polybutylene Terephthalate (PBT) Glass Filled	2	Signal	Nickel Plated Zinc Die Cast	0.328 "	8.34 mm	Solder	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Board Lock Gasket Mounting Brackets	-40 °C	105 ░C	B DB	3	Copper Alloy	125 VDC	IP67 - Dust Tight Waterproof	UL94 V-0	Board Edge Right Angle Through Hole
Amphenol CONEC 15-006603	5 A	Gold	Receptacle Female Sockets	Flash	Polybutylene Terephthalate (PBT) Glass Filled	2	Signal	Nickel Plated Zinc Die Cast	0.328 "	8.34 mm	Solder	Black	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Board Lock Gasket Mounting Brackets	-40 °C	105 ░C			Copper Alloy	125 VDC	IP67 - Dust Tight Waterproof	UL94 V-0	Board Edge Right Angle Through Hole	15	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

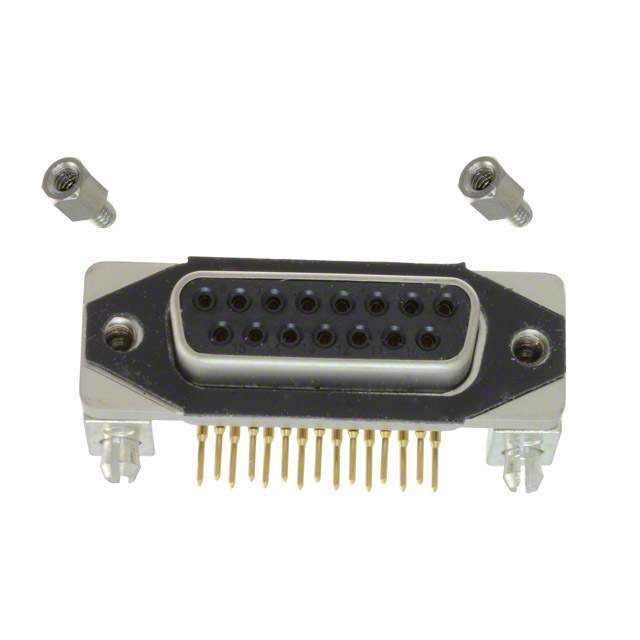

15 Position D-Sub Receptacle, Female Sockets Connector
