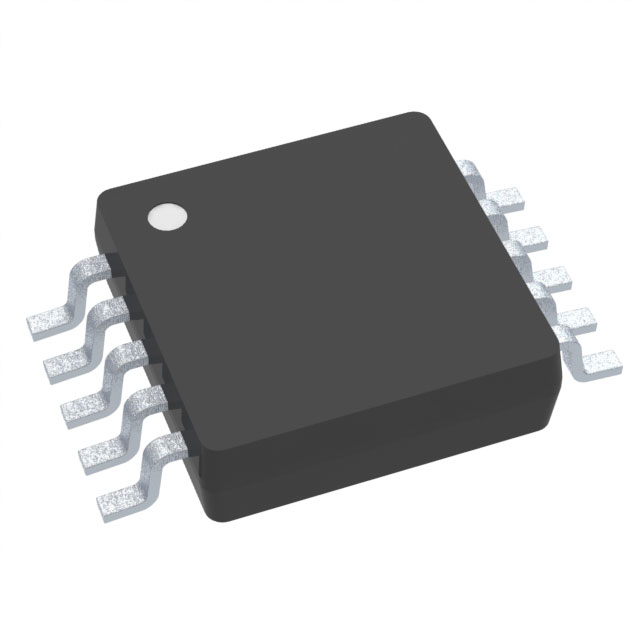

VCA820IDGSR
Active150MHZ BW WITH LINEAR IN DB GAIN CONTROL VARIABLE GAIN AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
VCA820IDGSR
Active150MHZ BW WITH LINEAR IN DB GAIN CONTROL VARIABLE GAIN AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCA820IDGSR |
|---|---|
| -3db Bandwidth | 168 MHz |
| Current - Input Bias | 19 µA |
| Current - Output / Channel [custom] | 160 mA |
| Current - Supply | 34 mA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Slew Rate | 1700 V/µs |
| Supplier Device Package | 10-VSSOP |
| Voltage - Input Offset | 4 mV |
| Voltage - Supply Span (Max) [Max] | 12 V |
| Voltage - Supply Span (Min) [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 4.30 | |
| Texas Instruments | LARGE T&R | 1 | $ 6.93 | |
| 100 | $ 5.65 | |||
| 250 | $ 4.44 | |||
| 1000 | $ 3.76 | |||
Description
General part information
VCA820 Series
The VCA820 is a dc-coupled, wideband, linear in dB, continuously variable, voltage-controlled gain amplifier. The VCA820 provides a differential input to single-ended conversion with a high-impedance gain control input, used to vary the gain down 40 dB from the nominal maximum gain set by the gain resistor (RG) and feedback resistor (RF).
The VCA820 internal architecture consists of two input buffers and an output current feedback amplifier stage, integrated with a multiplier core to provide a complete variable gain amplifier (VGA) system that does not require external buffering. The maximum gain is set externally with two resistors, providing flexibility in designs. The maximum gain is intended to be set between +2 V/V and +100 V/V. Operating from ±5-V supplies, the gain control voltage for the VCA820 adjusts the gain linearly in dB as the control voltage varies from 0 V to +2 V. For example, set for a maximum gain of +10 V/V, the VCA820 provides 20 dB, at +2-V input, to –20 dB at 0-V input of gain control range. The VCA820 offers excellent gain linearity. For a 20-dB maximum gain, and a gain-control input voltage varying between 1 V and 2 V, the gain does not deviate by more than ±0.4dB (maximum at +25°C).
The VCA820 is a dc-coupled, wideband, linear in dB, continuously variable, voltage-controlled gain amplifier. The VCA820 provides a differential input to single-ended conversion with a high-impedance gain control input, used to vary the gain down 40 dB from the nominal maximum gain set by the gain resistor (RG) and feedback resistor (RF).
