RT314006
ActiveTE Connectivity Potter & Brumfield Relays

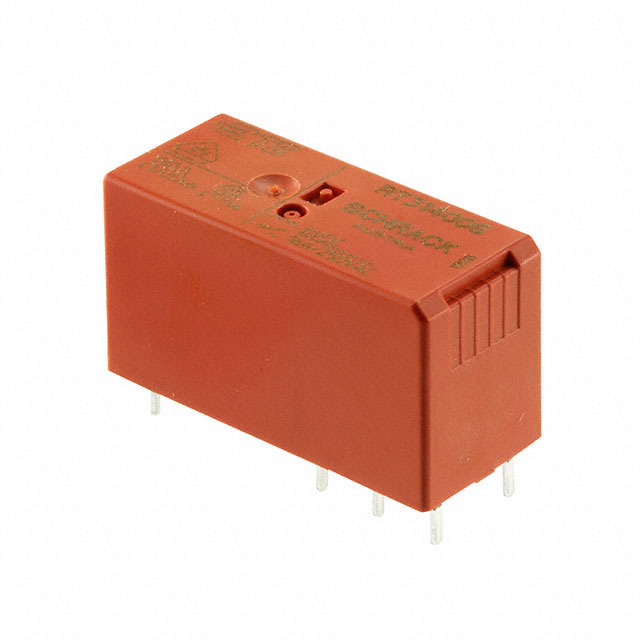

RELAY GEN PURPOSE SPDT 16A 6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT314006
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 16A 6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT314006 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 14.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
RT3140 Series
| Part | Switching Voltage [Max] | Must Release Voltage | Mounting Type | Termination Style | Load - Max Switching | Contact Rating (Current) | Coil Resistance | Relay Type | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Operate Voltage | Seal Rating | Approval Agency | Contact Form | Coil Insulation | Contact Material | Coil Current | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | 400 VAC | 1.2 VDC | Through Hole | PC Pin | 6400 VA | 16 A | 360 Ohms | General Purpose | Non Latching | 85 °C | -40 °C | 12 VDC | 8.4 VDC | Sealed - Flux Protection | CQC CSA cURus VDE | SPDT (1 Form C) | Class F | Silver Nickel (AgNi) | 33.3 mA | 8 ms | 6 ms |
TE Connectivity Potter & Brumfield Relays | 400 VAC | 1.2 VDC | Through Hole | PC Pin | 6400 VA | 16 A | 360 Ohms | General Purpose | Non Latching | 85 °C | -40 °C | 12 VDC | 8.4 VDC | Sealed - Flux Protection | CQC CSA cURus VDE | SPDT (1 Form C) | Class F | Silver Nickel (AgNi) | 14.2 mA | 8 ms | 6 ms |
TE Connectivity Potter & Brumfield Relays | 400 VAC | 0.6 VDC | Through Hole | PC Pin | 6400 VA | 16 A | 90 Ohms | General Purpose | Non Latching | 85 °C | -40 °C | 4.2 VDC | Sealed - Flux Protection | CQC CSA cURus VDE | SPDT (1 Form C) | Class F | Silver Nickel (AgNi) | 14.2 mA | 8 ms | 6 ms | |
TE Connectivity Potter & Brumfield Relays | 400 VAC | 6 VDC | Through Hole | PC Pin | 6400 VA | 16 A | 8.57 kOhms | General Purpose | Non Latching | 85 °C | -40 °C | 60 VDC | 42 VDC | Sealed - Flux Protection | CQC CSA cURus VDE | SPDT (1 Form C) | Class F | Silver Nickel (AgNi) | 14.2 mA | 8 ms | 6 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.73 | |
| 20 | $ 4.43 | |||
| 40 | $ 3.74 | |||
| 100 | $ 3.55 | |||
| 260 | $ 3.15 | |||
| 500 | $ 2.95 | |||
| 1000 | $ 2.76 | |||
Description
General part information
RT3140 Series
General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
