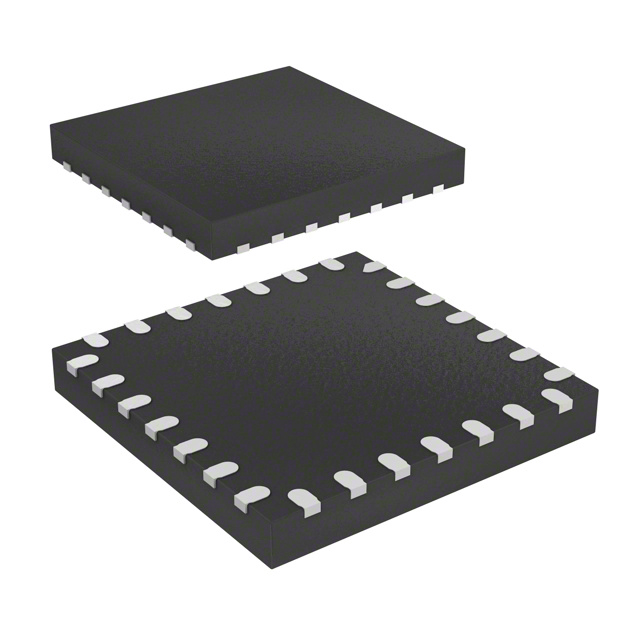

WM8988LGECN/V

Obsolete

Cirrus Logic Inc.

IC CODEC STER HDPH DRIVER 28QFN

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

IC CODEC STER HDPH DRIVER 28QFN

Technical Specifications

Parameters and characteristics for this part

Specification	WM8988LGECN/V

Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	2
Number of ADCs / DACs [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	28-UFQFN
Resolution (Bits)	24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	100 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	93 db
Sigma Delta	True
Supplier Device Package	28-QFN (4x4)
Type	Stereo Audio
Voltage - Supply, Analog [Max]	3.6 V
Voltage - Supply, Analog [Min]	1.8 V
Voltage - Supply, Digital [Max]	3.6 V
Voltage - Supply, Digital [Min]	1.42 V

Part	Package / Case	Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Resolution (Bits)	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Sigma Delta	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]
Cirrus Logic Inc. WM8988LGECN/V	28-UFQFN	Stereo Audio	28-QFN (4x4)	-25 °C	85 °C	24 b	3.6 V	1.42 V	2	2	Surface Mount	1.8 V	3.6 V		100 db	93 db
Cirrus Logic Inc. WM8988LGECN/RV	28-UFQFN	Stereo Audio	28-QFN (4x4)	-25 °C	85 °C	24 b	3.6 V	1.42 V	2	2	Surface Mount	1.8 V	3.6 V		100 db	93 db

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stereo Audio Interface 24 b 28-QFN (4x4)

Technical documentation and resources

No documents available
