904-27-1-12-2-B-0

Active

Wakefield-Vette

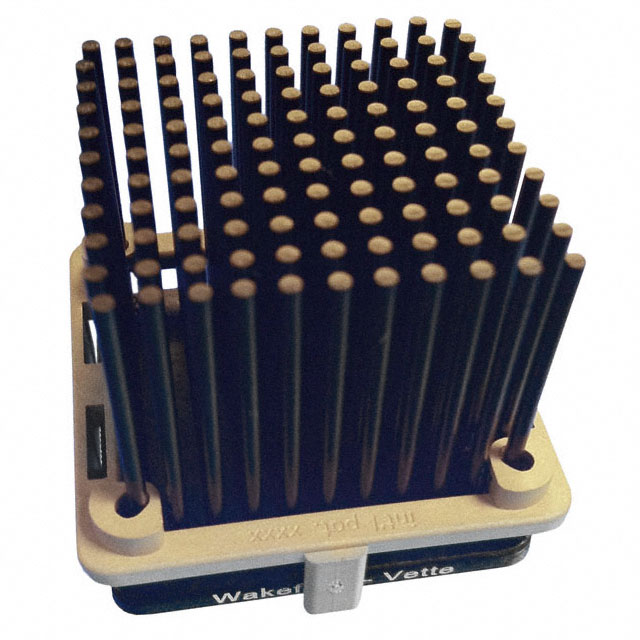

HEATSINK 27X27X12MM ELLIPTICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

904-27-1-12-2-B-0

Active

Wakefield-Vette

HEATSINK 27X27X12MM ELLIPTICAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	904-27-1-12-2-B-0

Attachment Method	Push Pin
Length	1.063 in
Length	27 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 4.8 °C/W
Thermal Resistance @ Natural	11.4 °C/W
Type	Top Mount
Width [y]	1.063 in
Width [y]	27 mm

904-27 Series

Part	Material	Attachment Method	Thermal Resistance @ Forced Air Flow	Length	Length	Shape	Package Cooled	Material Finish	Width [y]	Width [y]	Type	Fin Height	Fin Height	Thermal Resistance @ Natural	Fin Height [z]	Fin Height [z]
Wakefield-Vette 904-27-1-18-2-B-0	Aluminum	Push Pin	3.73 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount
Wakefield-Vette 904-27-1-33-2-B-0	Aluminum	Push Pin	2.62 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount	1.283 "	32.6 mm	8.51 °C/W
Wakefield-Vette 904-27-2-21-2-B-0	Aluminum	Push Pin	3.82 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount			9.56 °C/W	20.6 mm	0.811 in
Wakefield-Vette 904-27-1-21-2-B-0	Aluminum	Push Pin	3.43 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount			11 °C/W	20.6 mm	0.811 in
Wakefield-Vette 904-27-2-33-2-B-0	Aluminum	Push Pin	3.07 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount	1.283 "	32.6 mm	8.82 °C/W
Wakefield-Vette 904-27-2-23-2-B-0	Aluminum	Push Pin	3.2 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount	0.892 "	22.65 mm	10.6 °C/W
Wakefield-Vette 904-27-1-23-2-B-0	Aluminum	Push Pin	3.5 °C/W	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount	0.892 "	22.65 mm	9.4 °C/W
Wakefield-Vette 904-27-1-12-2-B-0	Aluminum	Push Pin	4.8 °C/W 200 LFM	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount			11.4 °C/W
Wakefield-Vette 904-27-2-15-2-B-0	Aluminum	Push Pin	4.48 °C/W	1.063 in	27 mm	Pin Fins Square	BGA	Black Anodized	1.063 in	27 mm	Top Mount			10.8 °C/W	14.6 mm	0.575 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.28
		10	$ 8.05
		25	$ 7.61
		90	$ 6.71
		270	$ 6.26
		540	$ 5.82
		1080	$ 5.70

Description

General part information

904-27 Series

Heat Sink BGA Aluminum Top Mount
