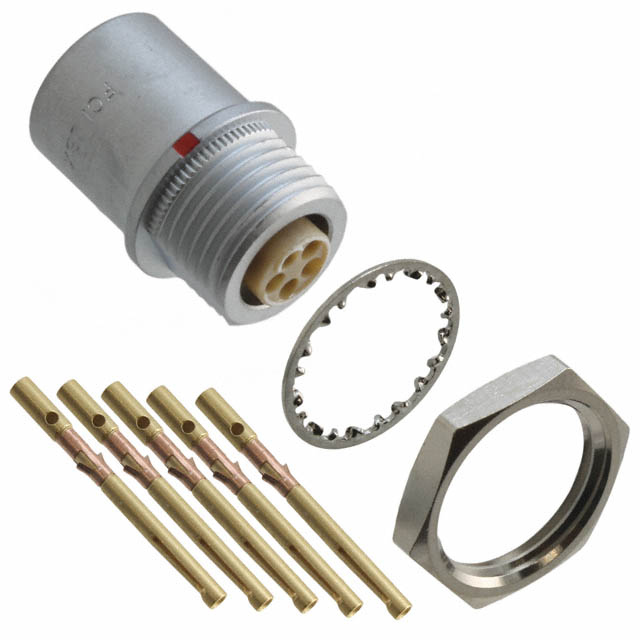

JBXED1G05FCSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	JBXED1G05FCSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	9 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Shielding	Shielded
Termination	Crimp
Voltage Rating	660 V

Part	Voltage Rating	Connector Type	Orientation	Shell Material	Mounting Feature	Material Flammability Rating	Insert Material	Shell Size - Insert	Color	Shielding	Fastening Type	Applications	Current Rating (Amps)	Termination	Contact Finish - Mating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material
Souriau-Sunbank by Eaton JBXED1G03FCSDSR	600 V	Receptacle Female Sockets	G	Brass	Bulkhead - Rear Side Nut	UL94 V-0	Polyetheretherketone (PEEK)	1	Silver	Shielded	Push-Pull	Industrial Instrumentation Medical Telecommunications	12 A	Crimp	Gold	IP40	125 °C	-40 °C	Chrome over Nickel	0.5 µm	19.7 µin	Metal
Souriau-Sunbank by Eaton JBXED1G05FCSDSR	660 V	Receptacle Female Sockets	G	Brass	Bulkhead - Rear Side Nut	UL94 V-0	Polyetheretherketone (PEEK)	1	Silver	Shielded	Push-Pull	Industrial Instrumentation Medical Telecommunications	9 A	Crimp	Gold	IP40	125 °C	-40 °C	Chrome over Nickel	0.5 µm	19.7 µin	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 33.56

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp
