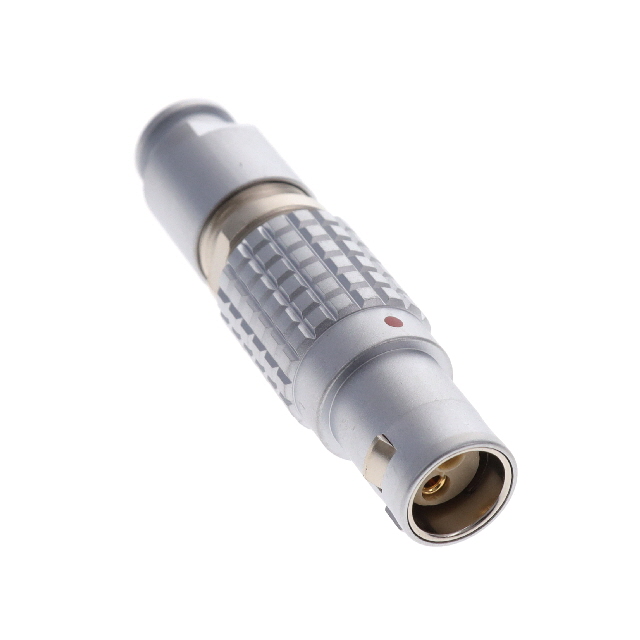

FGJ.1B.302.CLLD42Z

Active

LEMO

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGJ.1B.302.CLLD42Z

Active

LEMO

CONN PLUG FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGJ.1B.302.CLLD42Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [diameter]	3.1 mm, 4.2 mm
Cable Opening [diameter]	0.165 in, 0.122 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	J
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded

FGJ.1B Series

...

Part	Mounting Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Color	Contact Material	Material Flammability Rating	Primary Material	Current Rating (Amps)	Shielding	Insert Material	Fastening Type	Features	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Orientation	Shell Size - Insert	Shell Material	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Termination	Cable Opening [diameter]	Cable Opening [diameter]
LEMO FGJ.1B.310.CLLD72	Free Hanging (In-Line)	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	Silver	Bronze	UL94 V-0	Metal	2.5 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	10	59 Áin	1.5 Ám	IP50	J	310	Brass	Female Sockets Plug
LEMO FGJ.1B.302.CLLD42Z	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	15 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	2	59 Áin	1.5 Ám	IP50	J	302	Brass	Female Sockets Plug	3.1 mm 4.2 mm	0.122 in 0.165 in
LEMO FGJ.1B.306.CLLD62Z	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	7 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	6	59 Áin	1.5 Ám	IP50	J	306	Brass	Female Sockets Plug			6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FGJ.1B.303.CYMD72Z	Free Hanging (In-Line)	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	Silver	Bronze	UL94 V-0	Metal	12 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome		59 Áin	1.5 Ám	IP50	J	303	Brass	Female Sockets Plug							Crimp
LEMO FGJ.1B.303.CLLD72	Free Hanging (In-Line)	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	Silver	Bronze	UL94 V-0	Metal	12 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome		59 Áin	1.5 Ám	IP50	J	303	Brass	Female Sockets Plug
LEMO FGJ.1B.310.CLLD52	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	2.5 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	10	59 Áin	1.5 Ám	IP50	J	310	Brass	Female Sockets Plug	4.2 mm							0.165 in 0.205 in	5.2 mm
LEMO FGJ.1B.302.CLLD72	Free Hanging (In-Line)	Gold	0.244 in 0.283 in	6.2 mm 7.2 mm	Silver	Bronze	UL94 V-0	Metal	15 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	2	59 Áin	1.5 Ám	IP50	J	302	Brass	Female Sockets Plug
LEMO FGJ.1B.308.CYMD52	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	5 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	8	59 Áin	1.5 Ám	IP50	J	308	Brass	Female Sockets Plug	4.2 mm						Crimp	0.165 in 0.205 in	5.2 mm
LEMO FGJ.1B.307.CLLD52Z	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	7 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome	7	59 Áin	1.5 Ám	IP50	J	307	Brass	Female Sockets Plug	4.2 mm							0.165 in 0.205 in	5.2 mm
LEMO FGJ.1B.305.CYMD52	Free Hanging (In-Line)	Gold			Silver	Bronze	UL94 V-0	Metal	9 A	Shielded	Polyetheretherketone (PEEK)	Push-Pull	Backshell	Chrome	-55 °C	250 °C	Brass Chrome		59 Áin	1.5 Ám	IP50	J	305	Brass	Female Sockets Plug	4.2 mm						Crimp	0.165 in 0.205 in	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.85
		10	$ 40.94
		25	$ 37.16
		50	$ 34.61
		100	$ 32.30
		250	$ 29.59

Description

General part information

FGJ.1B Series

2 Position Circular Connector Plug, Female Sockets Solder Cup
