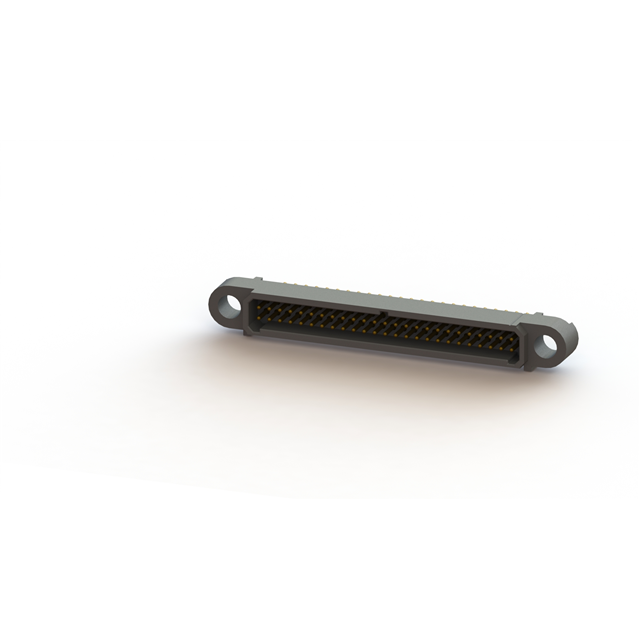

A221Y50VXX

Active

Nicomatic

MALE 50POS STRAIGHT TRGH 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 50POS STRAIGHT TRGH 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221Y50VXX

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Mating Flange
Insulation Color	Black
Insulation Height	0.161 in
Insulation Height	4.1 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

Part	Features	Contact Type	Contact Shape	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Voltage Rating	Insulation Color	Number of Rows	Style	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Insulation Material	Number of Positions Loaded	Contact Finish - Post	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Nicomatic A221Y50V22	Mating Flange Mounting Flange Mounting Hardware	Male Pin	Circular	Header	0.15 µm	5.9 µin	UL94 V-0	Gold	Through Hole	50	0.15 µm	5.9 µin	0.161 in	4.1 mm	600 VAC	Black	2	Board to Board Cable	0.039 "	1 mm	2.5 A	Liquid Crystal Polymer (LCP)	All	Gold	Copper Alloy	0.039 in	1 mm	Shrouded - 4 Wall	Solder	-65 ░C	200 °C
Nicomatic A221Y50VXX	Mating Flange	Male Pin	Circular	Header	0.15 µm	5.9 µin	UL94 V-0	Gold	Through Hole	50	0.15 µm	5.9 µin	0.161 in	4.1 mm	600 VAC	Black	2	Board to Board Cable	0.039 "	1 mm	2.5 A	Liquid Crystal Polymer (LCP)	All	Gold	Copper Alloy	0.039 in	1 mm	Shrouded - 4 Wall	Solder	-65 ░C	200 °C	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 50 position 0.039" (1.00mm)
