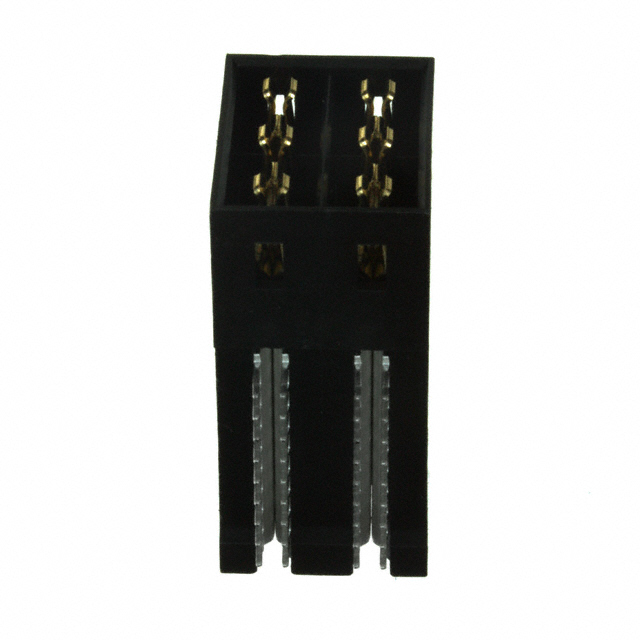

10078770-001LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10078770-001LF

Color	Black
Connector Style	Blade Power
Connector Type	Male Blades, Header
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	2 Power
Current Rating (Amps)	75 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.287 in
Pitch [x]	7.3 mm
Termination	Press-Fit

Part	Color	Number of Positions Loaded	Connector Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Number of Positions	Current Rating (Amps)	Connector Style	Number of Rows
Amphenol ICC (FCI) 10078770-001LF	Black	All	Header Male Blades	Through Hole Right Angle	-65 ░C	105 ░C	0.287 in	7.3 mm	UL94 V-0	Press-Fit	0.76 Ám	30 Áin	2 Power	2	75 A	Blade Power	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Connector Header, Male Blades Through Hole, Right Angle Black Blade Power
