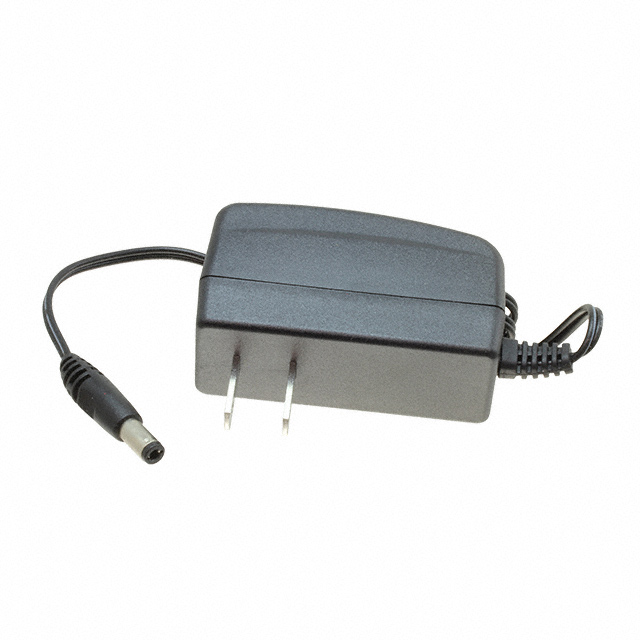

WR9HE1000CCP-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HE1000CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, LPS, FCC, VCCI, UKRSepro, EAC, CB
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension [x]	2.72 "
Size / Dimension [x]	69 mm
Size / Dimension [y]	1.13 in
Size / Dimension [y]	28.8 mm
Size / Dimension [z]	1.59 "
Size / Dimension [z]	40.3 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Region Utilized	Current - Output (Max) [Max]	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Standard Number	Applications	Cord Length	Cord Length	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]	Input Type	Power (Watts)	No Load Power Consumption [Max]	Voltage - Output	Efficiency	Form	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [z]	Output Connector [x]
GlobTek, Inc. WR9HE1000CLP-F(R6B)	2.72 "	69 mm	57.3 mm	28.8 mm	1.13 in	2.26 "	North America	1 A	Positive Center	90 VAC	264 VAC	CB cULus EAC FCC LPS PSE UKRSepro VCCI	60950-1	ITE (Commercial)	1.5 m	59 in	13.8 mm	5.5 mm	2.1 mm	Fixed Blade	12 W	75 mW	12 V	CoC Tier 2 Level VI	Wall Mount (Class II)	NEMA 1-15P
GlobTek, Inc. WR9HE1000CCP-F(R6B)	2.72 "	69 mm	40.3 mm	28.8 mm	1.13 in	1.59 "	North America	1 A	Positive Center	90 VAC	264 VAC	CB cULus EAC FCC LPS PSE UKRSepro VCCI	60950-1	ITE (Commercial)	1.5 m	59 in				Fixed Blade	12 W	75 mW	12 V	Level VI	Wall Mount (Class II)	NEMA 1-15P	Barrel Plug	2.1 mm 5.5 mm	11 mm
GlobTek, Inc. WR9HE1000LCP-F(R6B)	2.72 "	69 mm	40.3 mm	28.8 mm	1.13 in	1.59 "	North America	1 A	Positive Center	90 VAC	264 VAC	CB cULus EAC FCC LPS PSE UKRSepro VCCI	60950-1	ITE (Commercial)	1.5 m	59 in				Fixed Blade	12 W	75 mW	12 V	Level VI	Wall Mount (Class II)	NEMA 1-15P	Barrel Plug	2.5 mm 5.5 mm		11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
