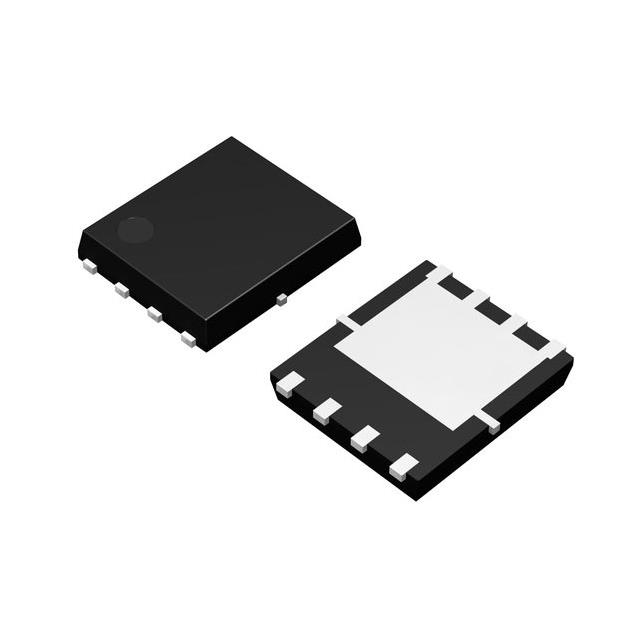

RS6E120BGTB1
ActiveRohm Semiconductor
MOSFET, N-CHANNEL, 30V, 270A, HSOP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
RS6E120BGTB1
ActiveRohm Semiconductor
MOSFET, N-CHANNEL, 30V, 270A, HSOP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS6E120BGTB1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 120 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 75 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 5750 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 138 W, 3 W |
| Supplier Device Package | 8-HSOP |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id [Max] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.57 | |
| 10 | $ 2.34 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.65 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.28 | |||
| Digi-Reel® | 1 | $ 3.57 | ||
| 10 | $ 2.34 | |||
| 25 | $ 2.02 | |||
| 100 | $ 1.65 | |||
| 250 | $ 1.48 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.28 | |||
| Tape & Reel (TR) | 2500 | $ 1.19 | ||
| 5000 | $ 1.13 | |||
| 7500 | $ 1.10 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 2.70 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.09 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.79 | |||
| 250 | $ 1.65 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.28 | |||
Description
General part information
RS6E120BG Series
RS6E120BG is a power MOSFET with low-on resistance, suitable for switching, motor drives and DC/DC converter.
