20RF-JMCS-G-1B-TF(N)(LF)(SN)

Obsolete

JST Sales America Inc.

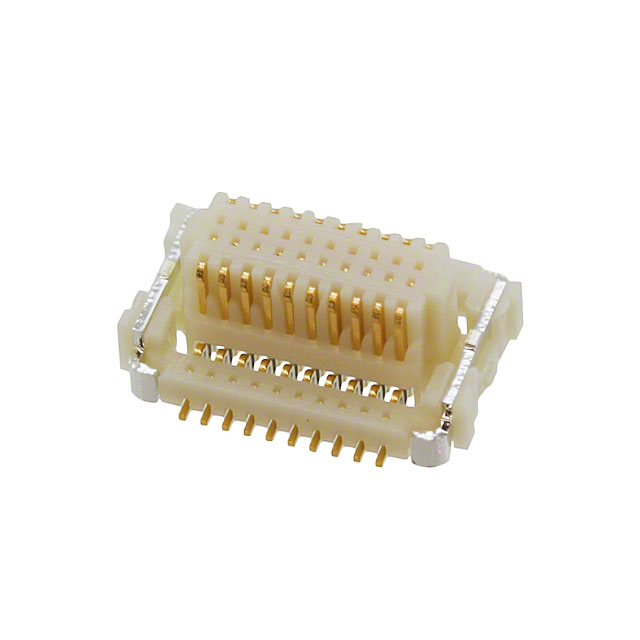

CONN RCPT 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JST Sales America Inc.

CONN RCPT 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	20RF-JMCS-G-1B-TF(N)(LF)(SN)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Connector Type	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mounting Type	Features
JST Sales America Inc. 20RF-JMCS-G-1B-TF(N)(LF)(SN)	20	Center Strip Contacts Receptacle	Gold	2	0.5 mm	0.02 in	0.13 in	3.3 mm	Surface Mount	Board Guide Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
