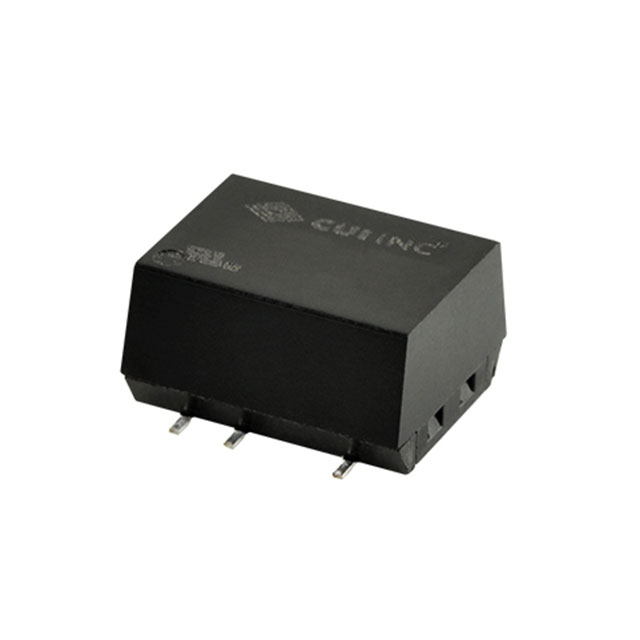

PHP1-S5-S5-M-TR
ActiveCUI Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
PHP1-S5-S5-M-TR
ActiveCUI Inc.
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHP1-S5-S5-M-TR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 75 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [z] | 6.7 mm |
| Size / Dimension [z] | 0.26 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.78 | |
| 5 | $ 8.46 | |||
| 10 | $ 8.32 | |||
| 25 | $ 8.14 | |||
| 50 | $ 8.01 | |||
| 100 | $ 7.88 | |||
| 250 | $ 7.71 | |||
| Digi-Reel® | 1 | $ 8.78 | ||
| 5 | $ 8.46 | |||
| 10 | $ 8.32 | |||
| 25 | $ 8.14 | |||
| 50 | $ 8.01 | |||
| 100 | $ 7.88 | |||
| 250 | $ 7.71 | |||
| Tape & Reel (TR) | 500 | $ 7.58 | ||
| 1000 | $ 7.46 | |||
Description
General part information
PHP1-S5 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
