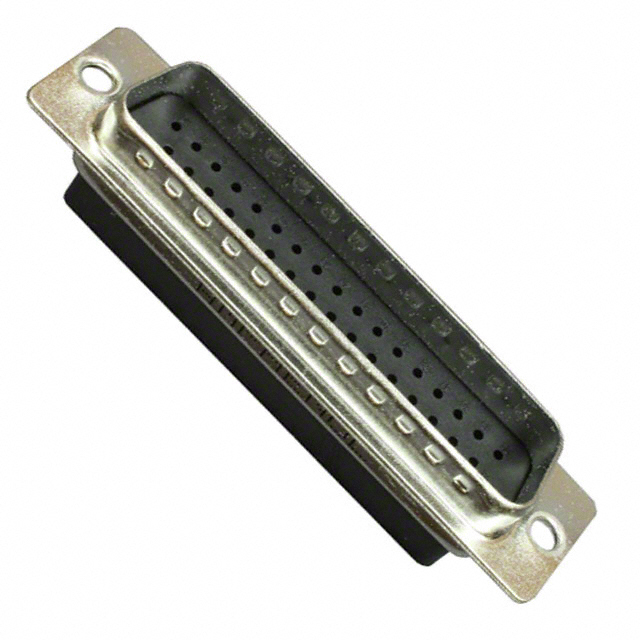

L777-RR-D-50-P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 50POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777-RR-D-50-P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 50POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777-RR-D-50-P |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout | 5 |
L777RRD50 Series
| Part | Note | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Connector Style | Color | Shell Size, Connector Layout | Mounting Type | Features | Contact Type | Connector Type | Dielectric Material | Shell Finish Thickness | Shell Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Contacts Not Included | 50 | -55 °C | 125 °C | 3 | D-Sub | Black | 5 | Free Hanging (In-Line) | Grounding Indents | Signal | Plug for Male Contacts | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 µm | 100 µin | Female Screwlock (M3) Mating Side |
Amphenol ICC (Commercial Products) | Contacts Not Included | 50 | -55 °C | 125 °C | 3 | D-Sub | Black | 5 | Free Hanging (In-Line) | Grounding Indents | Signal | Plug for Male Contacts | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 µm | 100 µin | Female Screwlock (4-40) Mating Side |
Amphenol ICC (Commercial Products) | Contacts Not Included | 50 | -55 °C | 125 °C | 3 | D-Sub | Black | 5 | Free Hanging (In-Line) | Grounding Indents | Signal | Plug for Male Contacts | Polybutylene Terephthalate (PBT) Glass Filled | 2.54 µm | 100 µin | Housing/Shell (Unthreaded) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.35 | |
| 40 | $ 2.82 | |||
| 120 | $ 2.68 | |||
| 1000 | $ 1.94 | |||
| 5000 | $ 1.74 | |||
Description
General part information
L777RRD50 Series
Plug for Male Contacts Housing D-Sub Connector 50 Position
