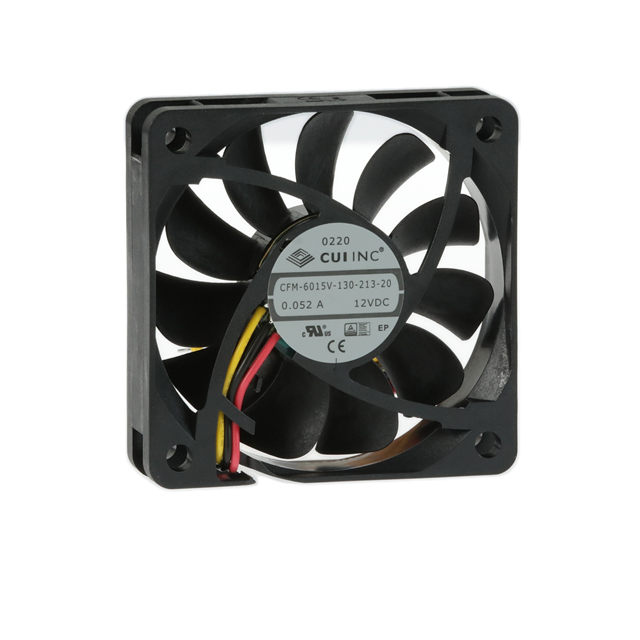

CFM-6015V-130-213-20

Active

CUI Devices

DC FAN AXIAL OMNICOOL BEARING 12V 4.5V TO 13.8V 17.6CFM 21.3DB 60 X 60 X 15MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-6015V-130-213-20

Active

CUI Devices

DC FAN AXIAL OMNICOOL BEARING 12V 4.5V TO 13.8V 17.6CFM 21.3DB 60 X 60 X 15MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-6015V-130-213-20

Air Flow	0.493 m³/min
Air Flow	17.6 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	58 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	21.3 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	700 mW
RPM	3000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	29.9 Pa
Static Pressure	0.12 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	4.5 V
Weight	0.078 lb
Weight	35.38 g
Width [x]	15 mm

CFM-6015 Series

Part	Termination	Noise	Static Pressure	Static Pressure	Air Flow	Air Flow	Voltage - Rated	Lifetime @ Temp.	Features	Voltage Range [Min]	Voltage Range [Max]	RPM	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Width [x]	Weight	Weight	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Material - Blade	Power (Watts)	Bearing Type
CUI Devices CFM-6015V-139-292-20	3 Wire Leads	29.2 dB(A)	0.14 in H2O	34.9 Pa	0.638 mł/min	22.8 CFM	12 VDC	70000 Hrs	Auto Restart Speed Sensor (Tach)	4.5 V	13.8 VDC	3900 RPM	0.079 A	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)
CUI Devices CFM-6015V-147-342-11	3 Wire Leads	34.2 dB(A)	0.18 in H2O	44.8 Pa	0.739 mł/min	26.4 CFM	12 VDC	70000 Hrs	Auto Restart Locked Rotor Sensor	4.5 V	13.8 VDC		0.147 A	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)
CUI Devices CFM-6015V-130-213-20	3 Wire Leads	21.3 dB(A)	0.12 in H2O	29.9 Pa	0.493 m³/min	17.6 CFM	12 VDC	70000 Hrs	Auto Restart Speed Sensor (Tach)	4.5 V	13.8 VDC	3000 RPM	58 mA	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	700 mW
CUI Devices CFM-6015V-130-213	2 Wire Leads	21.3 dB(A)	0.12 in H2O	29.9 Pa	0.493 m³/min	17.6 CFM	12 VDC	70000 Hrs	Auto Restart	4.5 V	13.8 VDC	3000 RPM	58 mA	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	700 mW
CUI Devices CFM-6015V-122-145	2 Wire Leads	14.5 dB(A)	0.04 in H2O	10 Pa			12 VDC	70000 Hrs	Auto Restart	4.5 V	13.8 VDC	2200 RPM	29 mA	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	350 mW
CUI Devices CFM-6015V-247-342-11	3 Wire Leads	34.2 dB(A)	0.18 in H2O	44.8 Pa	0.739 mł/min	26.4 CFM	24 VDC	70000 Hrs	Auto Restart Locked Rotor Sensor				0.087 A	60 mm	60 mm	15 mm	0.078 lb	35.38 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	2.09 W
CUI Devices CFM-6015-13-22	4 Wire Leads	39 dB(A)	0.23 in H2O	57.3 Pa	0.77 m³/min	27.5 CFM	12 VDC	70000 Hrs	Auto Restart PWM Control Speed Sensor (Tach)	6 VDC	13.8 VDC	5100 RPM	0.17 A	60 mm	60 mm	15.4 mm	0.089 lb	40.37 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	2.64 W	Ball
CUI Devices CFM-6015-13-11	3 Wire Leads	39 dB(A)	0.23 in H2O	57.3 Pa	0.77 m³/min	27.5 CFM	12 VDC	70000 Hrs	Auto Restart Locked Rotor Sensor	6 VDC	13.8 VDC	5100 RPM	0.17 A	60 mm	60 mm	15.4 mm	0.089 lb	40.37 g	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	CE cURus TUV	Polybutylene Terephthalate (PBT)	2.64 W	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.55
		10	$ 7.21
		25	$ 6.78
		50	$ 6.52
		200	$ 6.01
		400	$ 5.62
		600	$ 5.54

Description

General part information

CFM-6015 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H omniCOOL™ Magnetic Sleeve 17.6 CFM (0.493m³/min) 3 Wire Leads
