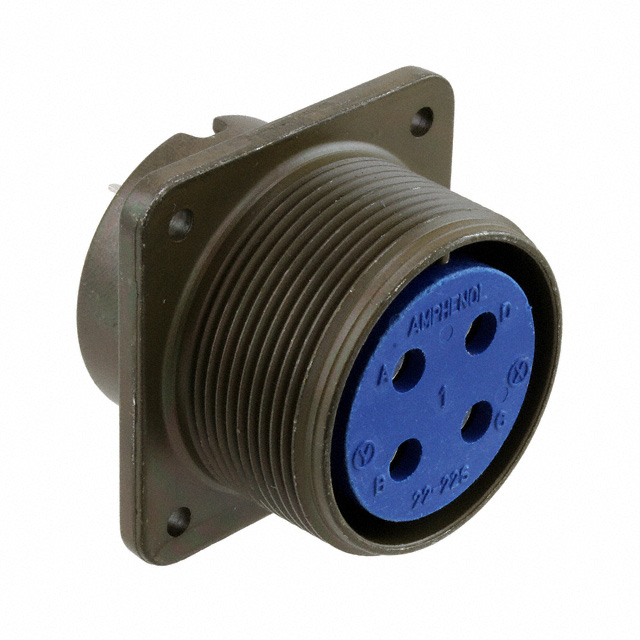

97-3102A-22-22S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 4P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-22-22S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 4P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-22-22S

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22
Shielding	Unshielded

97-3102A22 Series

Part	Contact Material	Color	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Connector Type	Applications	Insert Material	Shell Finish	Number of Positions	Orientation	Shell Size - Insert	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations 97-3102A-22-19P	Copper Alloy	Olive Drab	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab Chromate over Cadmium	14	N	22-19	Metal
Amphenol Industrial Operations 97-3102A-22-19S(946)	Copper Alloy	Black	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Black Zinc Alloy	14	N	22-19	Metal
Amphenol Industrial Operations 97-3102A-22-14P(946)	Copper Alloy	Black	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Black Zinc Alloy	19	N	22-14	Metal
Amphenol Industrial Operations 97-3102A-22-22S	Copper Alloy	Olive Drab	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab Chromate over Cadmium	4	N		Metal	22	22
Amphenol Industrial Operations 97-3102A-22-14S	Copper Alloy	Olive Drab	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab Chromate over Cadmium	19	N	22-14	Metal
Amphenol Industrial Operations 97-3102A-22-19P(946)	Copper Alloy	Black	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Black Zinc Alloy	14	N	22-19	Metal
Amphenol Industrial Operations 97-3102A-22-19S	Copper Alloy	Olive Drab	Silver	Unshielded	-55 °C	125 °C	Aluminum Alloy	Flange	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Olive Drab Chromate over Cadmium	14	N	22-19	Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.57
		10	$ 43.06
		25	$ 39.09
		50	$ 36.42
		100	$ 33.99
		250	$ 31.14

Description

General part information

97-3102A22 Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
