SRP2313AA-220M

Active

Bourns Inc.

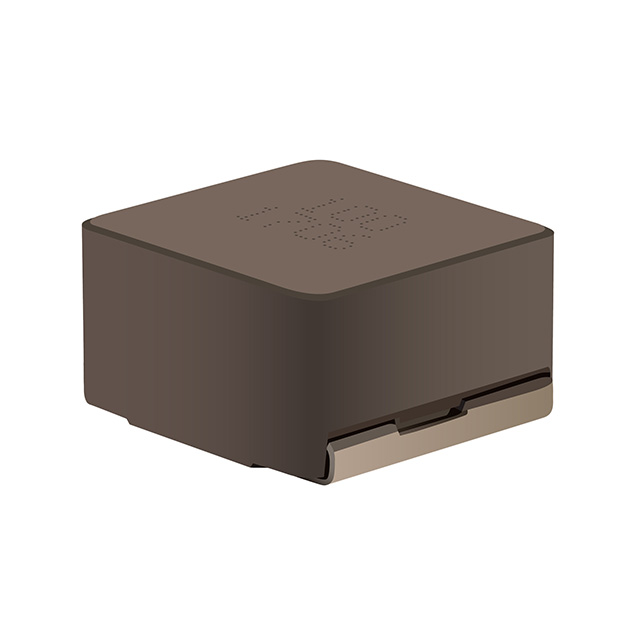

INDUCTOR, SHLD, 22UH, 18A, AEC-Q200

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR, SHLD, 22UH, 18A, AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Part	Q @ Freq	Material - Core	Package / Case	Mounting Type	Frequency - Self Resonant	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Current Rating (Amps)	Shielding	Inductance	Type	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	DC Resistance (DCR) [Max]
Bourns Inc. SRP2313AA-2R2M	60 100 kHz	Alloy Powder	Nonstandard	Surface Mount	19 MHz	43 A	22 mm	0.866 in	0.925 "	23.5 mm	1.25 mOhm	52 A	Shielded	2.2 µH	Drum Core Wirewound	100 kHz	13 mm	0.512 "	AEC-Q200	155 °C	-55 °C	20 %
Bourns Inc. SRP2313AA-230M	30 100 kHz	Alloy Powder	Nonstandard	Surface Mount	5 MHz	14 A	22 mm	0.866 in	0.925 "	23.5 mm		18 A	Shielded	23 µH	Drum Core Wirewound	100 kHz	13 mm	0.512 "	AEC-Q200	155 °C	-55 °C	20 %	11 mOhm
Bourns Inc. SRP2313AA-220M	30 100 kHz	Alloy Powder	Nonstandard	Surface Mount	5 MHz	14 A	22 mm	0.866 in	0.925 "	23.5 mm		18 A	Shielded	22 µH	Drum Core Wirewound	100 kHz	13 mm	0.512 "	AEC-Q200	155 °C	-55 °C	20 %	11 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µH Shielded Drum Core, Wirewound Inductor 18 A 11mOhm Max Nonstandard
