MWA050015A-10A
ActiveInventus Power

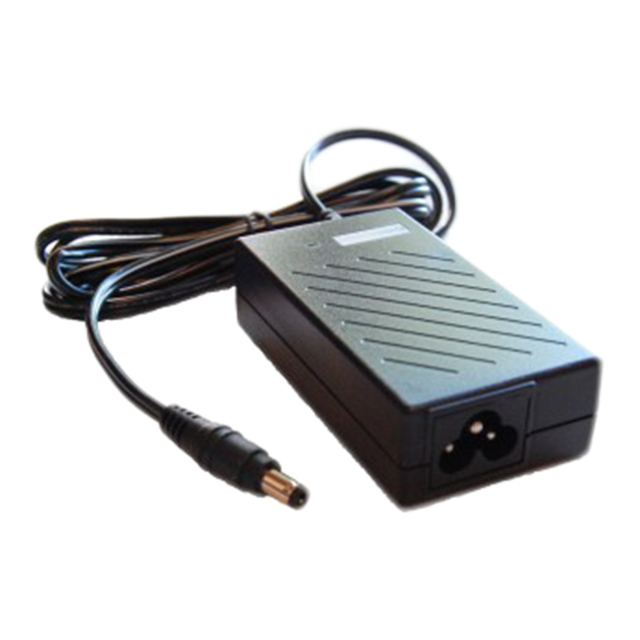

AC/DC DESKTOP ADAPTER 15V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MWA050015A-10A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 15V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MWA050015A-10A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 3.3 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C6 |
| Input Type | Cord |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 50 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.53 " |
| Size / Dimension [x] | 89.6 mm |
| Size / Dimension [y] | 48.8 mm |
| Size / Dimension [y] | 1.92 in |
| Size / Dimension [z] | 0.99 " |
| Size / Dimension [z] | 25.2 mm |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 26.10 | |
Description
General part information
MWA050015 Series
15V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
