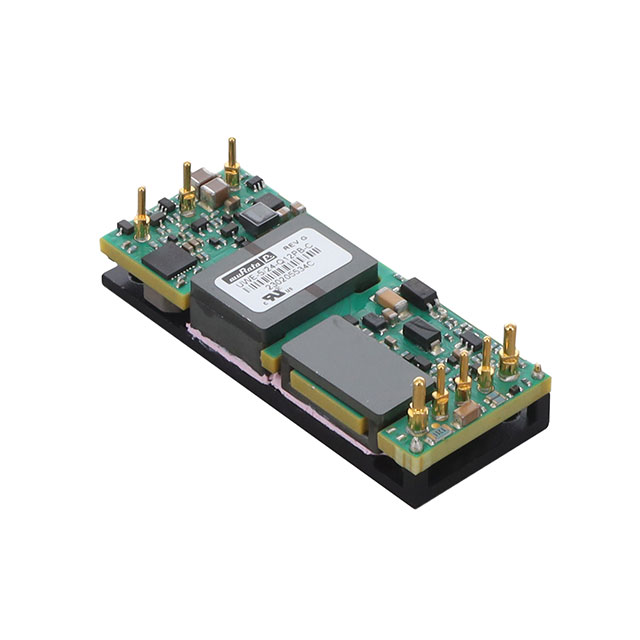

UWE-5/24-Q12PB-C

Murata Power Solutions Inc.

DC DC CONVERTER 5V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UWE-5/24-Q12PB-C

Murata Power Solutions Inc.

DC DC CONVERTER 5V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UWE-5/24-Q12PB-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	24 A
Efficiency	92 %
Features	Remote Sense, Baseplate, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Eighth Brick
Power (Watts)	120 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.52 "
Size / Dimension [z]	13.2 mm
Supplier Device Package	Eighth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

UWE-5 Series

Part	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Type	Control Features	Applications	Voltage - Output 1	Package / Case	Voltage - Input (Max) [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Supplier Device Package	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. UWE-5/20-Q48PB-C	20 A	Through Hole	18 V	100 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	75 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	90.5 %	85 °C	-40 °C	2250 VDC
Murata Power Solutions Inc. UWE-5/20-Q48P-C	20 A	Through Hole	18 V	100 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	75 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	90.5 %	85 °C	-40 °C	2250 VDC
Murata Power Solutions Inc. UWE-5/15-Q12NB-C	15 A	Through Hole	9 V	75 W	Isolated Module	Active Low Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	36 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	91 %	85 °C	-40 °C	1.5 kV
Murata Power Solutions Inc. UWE-5/24-Q12P-C	24 A	Through Hole	9 V	120 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	Eighth Brick	36 V		2.3 in	0.9 "	10.2 mm	0.4 "	22.9 mm	58.4 mm	1	92 %	85 °C	-40 °C	2250 VDC	Eighth Brick
Murata Power Solutions Inc. UWE-5/15-Q12P-C	15 A	Through Hole	9 V	75 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	36 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	91 %	85 °C	-40 °C	1.5 kV
Murata Power Solutions Inc. UWE-5/15-Q12N-C	15 A	Through Hole	9 V	75 W	Isolated Module	Active Low Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	36 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	91 %	85 °C	-40 °C	1.5 kV
Murata Power Solutions Inc. UWE-5/15-Q48P-C	15 A	Through Hole	18 V	75 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	75 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	90 %	85 °C	-40 °C	2250 VDC
Murata Power Solutions Inc. UWE-5/24-Q12PB-C	24 A	Through Hole	9 V	120 W	Isolated Module	Active High Enable	ITE (Commercial)	5 V	Eighth Brick	36 V	Baseplate Remote On/Off Remote Sense	2.3 in	0.9 "		0.52 "		58.4 mm	1	92 %	85 °C	-40 °C	2250 VDC	Eighth Brick	22.9 mm	13.2 mm
Murata Power Solutions Inc. UWE-5/15-Q48NBL1-C	15 A	Through Hole	18 V		Isolated Module	Active Low Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	75 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	90 %	85 °C	-40 °C	2250 VDC
Murata Power Solutions Inc. UWE-5/15-Q48NB-C	15 A	Through Hole	18 V	75 W	Isolated Module	Active Low Enable	ITE (Commercial)	5 V	1/8 Brick 8-DIP Module	75 V	OCP OTP OVP Remote On/Off SCP UVLO	2.3 in	0.9 "	8.6 mm	0.34 in	22.9 mm	58.4 mm	1	90 %	85 °C	-40 °C	2250 VDC
