LF1D-EN21F-2W-A
ObsoleteIDEC

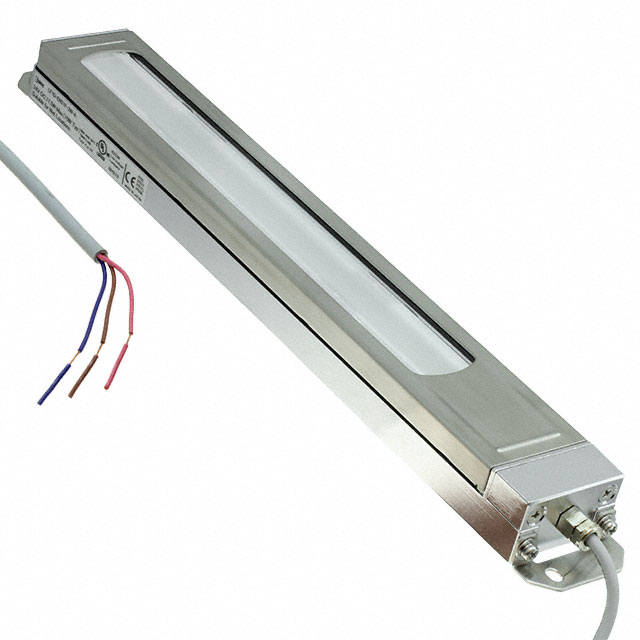

LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F
Deep-Dive with AI
Search across all available documentation for this part.
LF1D-EN21F-2W-A
ObsoleteIDEC
LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LF1D-EN21F-2W-A |
|---|---|
| Approval Agency | cULus, CE |
| Housing Material | Aluminum (Al) |
| Illumination Color | White, Cool |
| Ingress Protection | IP67F/IP69K - Dust Tight, Oil and Water Resistant, Waterproof |
| Length [x] | 15.35 " |
| Length [x] | 390 mm |
| Lens Type | Flat, Diffused |
| Luminous Flux | 1530 lm |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 10 W |
| Profile (W x H) [x] | 49.8 mm |
| Profile (W x H) [x] | 1.96 in |
| Profile (W x H) [y] | 29.8 mm |
| Profile (W x H) [y] | 1.17 in |
| Rated Life | 50000 Hours |
| Termination Style | Cable Leads |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 344.33 | |
| 10 | $ 319.74 | |||
| 25 | $ 308.38 | |||
| 50 | $ 297.03 | |||
| 100 | $ 283.79 | |||
Description
General part information
LF1D-EN21 Series
LED LIGHT BAR, WHITE, 1530 LM, 10 W, 24 VDC, 390 MM, IP67F
Documents
Technical documentation and resources
