OSTOQ0354501

Active

On Shore Technology Inc.

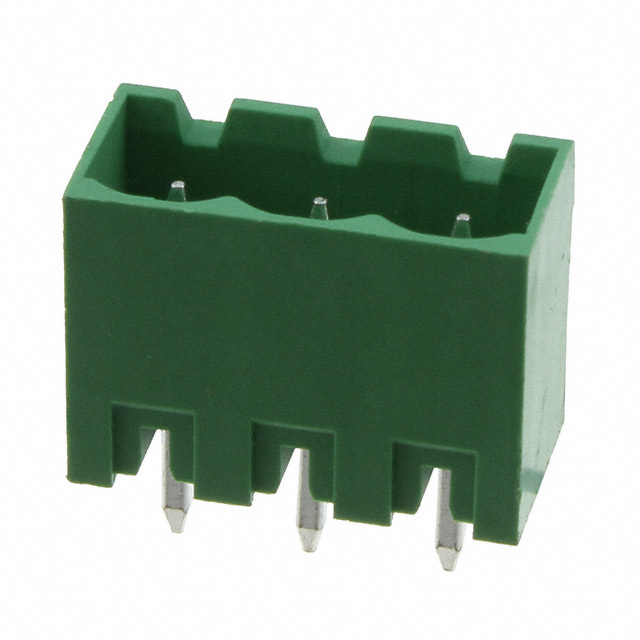

TERM BLOCK HDR 3POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ0354501

Active

On Shore Technology Inc.

TERM BLOCK HDR 3POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ0354501

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ03 Series

Part	Number of Levels	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Type	Positions Per Level	Contact Material	Header Orientation	Material Flammability Rating	Housing Material	Features	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Voltage - UL	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Termination Style
On Shore Technology Inc. OSTOQ035550	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	Vertical	UL94 V-0	Thermoplastic	Mating Flange	0.2 in	5.08 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ030551	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	90° Right Angle	UL94 V-0	Thermoplastic	Mating Flange	0.3 in	7.62 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ031250	1	Solder			Header Male Pins Shrouded (4 Side)	3	Brass	Vertical		Thermoplastic		0.138 in	3.5 mm	-30 ░C	105 ░C	Tin	300 V	0.138 in	3.5 mm	3.5 mm	0.138 in
On Shore Technology Inc. OSTOQ035451	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3		90° Right Angle		Thermoplastic		0.2 in	5.08 mm	-40 °C	115 °C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ03A150	1	Through Hole	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	Vertical		Thermoplastic		0.295 in	7.5 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm			Solder
On Shore Technology Inc. OSTOQ037050	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (2 Side)	3	Brass	Vertical		Thermoplastic		0.197 in	5 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ03A151	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	90° Right Angle		Thermoplastic		0.295 in	7.5 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ037100	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	Vertical		Thermoplastic		0.197 in	5 mm	-30 ░C	105 ░C	Tin	300 V
On Shore Technology Inc. OSTOQ03A050	1	Solder	0.157 in	4 mm	Header Male Pins Shrouded (2 Side)	3	Brass	Vertical		Thermoplastic		0.295 in	7.5 mm	-30 ░C	105 ░C	Tin	300 V	0.157 in	4 mm
On Shore Technology Inc. OSTOQ0354501	1	Through Hole	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	3	Brass	Vertical		Thermoplastic		0.2 in	5.08 mm	-40 °C	115 °C	Tin	300 V	0.157 in	4 mm			Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.87

Description

General part information

OSTOQ03 Series

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
