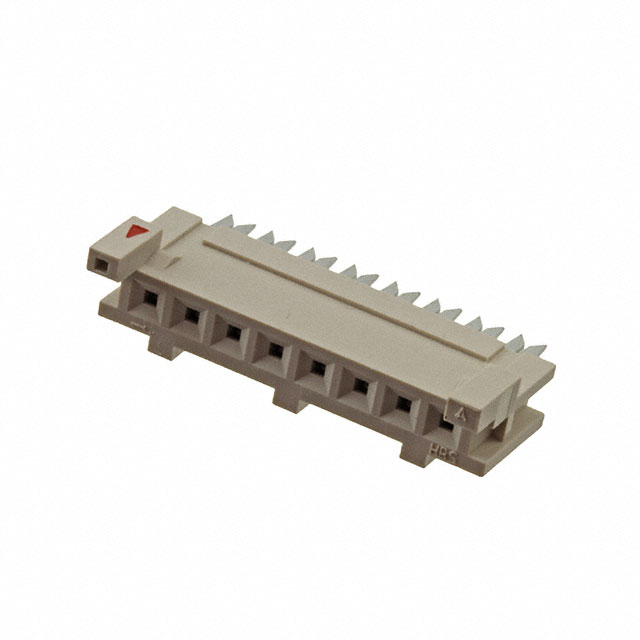

DF1-8S-2.5R28(05)

LTB

Hirose Electric USA, Inc.

CONN SOCKET 8POS IDC 28AWG TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF1 Series Catalog

DF1-8S-2.5R28(05)

LTB

Hirose Electric USA, Inc.

CONN SOCKET 8POS IDC 28AWG TIN

Deep-Dive with AI

DocumentsDF1 Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1-8S-2.5R28(05)

Cable Termination	IDC
Color	Brown
Connector Type	Socket
Contact Finish	Tin
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	1
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Wire Gauge	28 AWG
Wire Type	Discrete

DF1-8 Series

Part	Features [Min]	Features [Max]	For Use With/Related Products	Number of Positions	Accessory Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Shrouding	Voltage Rating	Termination	Contact Type	Style	Contact Length - Post	Contact Length - Post	Connector Type	Contact Shape	Insulation Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Number of Positions Loaded	Contact Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Color	Contact Termination	Note	Wire Type	Cable Termination	Wire Gauge	Contact Finish	Features
Hirose Electric USA, Inc. DF1-8A1.05	26 AWG	28 AWG	DF1 Series	8	Cap (Cover)
Hirose Electric USA, Inc. DF1-8P-2.5DS(05)				8		UL94 V-0	2.5 mm	0.098 in	Shrouded - 1 Wall	250 VDC	Solder	Male Pin	Board to Cable/Wire	0.118 in	3 mm	Header	Square	Nylon Polyamide (PA)	Friction Lock	1 µm	39.4 µin	Brown	Through Hole Right Angle	0.177 in	4.5 mm	1	All	Brass	Tin	-30 ░C	85 °C	3 A	6 mm	0.236 in
Hirose Electric USA, Inc. DF1-8S-2.5C				8								Female Socket				Socket		Nylon Polyamide (PA)					Free Hanging (In-Line)			1				-30 ░C	85 °C				0.098 in	2.5 mm	Brown	Crimp	Contacts Not Included
Hirose Electric USA, Inc. DF1-8S-2.5R26(05)				8								Female Socket				Socket							Free Hanging (In-Line)			1									0.098 in	2.5 mm	Brown			Discrete	IDC	26 AWG	Tin	Feed Through
Hirose Electric USA, Inc. DF1-8S-2.5R28(05)				8								Female Socket				Socket							Free Hanging (In-Line)			1									0.098 in	2.5 mm	Brown			Discrete	IDC	28 AWG	Tin	Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		10	$ 0.98
		25	$ 0.88
		50	$ 0.81
		100	$ 0.75
		300	$ 0.67
		500	$ 0.63
		1000	$ 0.59
		2500	$ 0.53
Newark	Each	1	$ 0.80
		2500	$ 0.72

Description

General part information

DF1-8 Series

8 Position Rectangular Socket Connector IDC Tin 28 AWG

Documents

Technical documentation and resources

DF1 Series Catalog

Datasheet
