SGHG.09RD250

Active

Techflex

SLEEVING 0.118" ID FBRGLASS 250'

Search across all available documentation for this part.

Active

Techflex

SLEEVING 0.118" ID FBRGLASS 250'

Technical Specifications

Parameters and characteristics for this part

Specification	SGHG.09RD250

Abrasion Protection	Abrasion and Cut Resistant
Color	Red
Diameter - Inside [diameter]	3 mm
Diameter - Inside [diameter]	0.118 "
Features	Alphatic Hydrocarbon Resistant, Acid Resistant, Chemical Resistant, Clean Cut
Length [x]	76.2 m
Length [x]	250 ft
Material	Fiberglass, Silicone Coated
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-85 °C
Type	Sleeving, Insulated
Type Attributes	Braided

Part	Type Attributes	Length [x]	Length [x]	Material	Type	Features	Abrasion Protection	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
Techflex SGHG.06RD250	Braided	76.2 m	250 ft	Fiberglass Silicone Coated	Sleeving Insulated	Acid Resistant Alphatic Hydrocarbon Resistant Chemical Resistant Clean Cut	Abrasion and Cut Resistant	Red	4.22 mm	0.166 in	200 °C	-85 °C
Techflex SGHG.08RD250	Braided	76.2 m	250 ft	Fiberglass Silicone Coated	Sleeving Insulated	Acid Resistant Alphatic Hydrocarbon Resistant Chemical Resistant Clean Cut	Abrasion and Cut Resistant	Red	3.38 mm	0.133 in	200 °C	-85 °C
Techflex SGHG.09RD250	Braided	76.2 m	250 ft	Fiberglass Silicone Coated	Sleeving Insulated	Acid Resistant Alphatic Hydrocarbon Resistant Chemical Resistant Clean Cut	Abrasion and Cut Resistant	Red	3 mm	0.118 "	200 °C	-85 °C
Techflex SGHG.00RD100	Braided			Fiberglass Silicone Coated	Sleeving Insulated	Acid Resistant Alphatic Hydrocarbon Resistant Chemical Resistant Clean Cut	Abrasion and Cut Resistant	Red	8.38 mm	0.33 in	200 °C	-85 °C	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 364.21

General part information

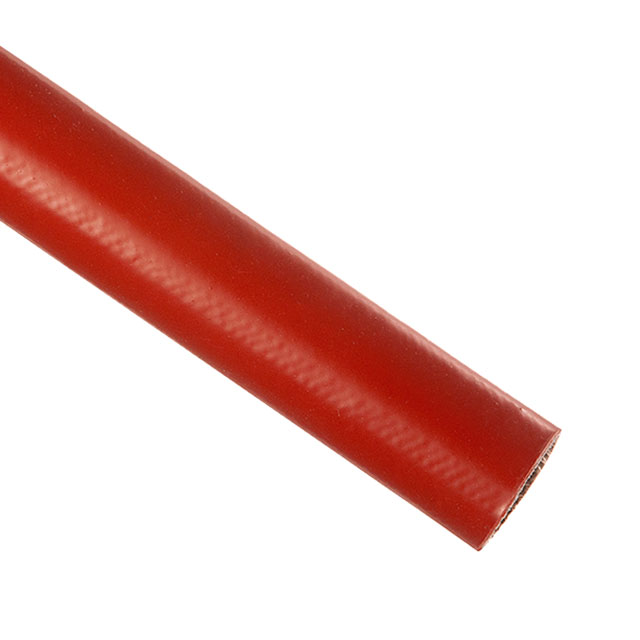

Red Fiberglass, Silicone Coated Braided Sleeving, Insulated 0.118" (3.00mm) 250' (76.20m)
