BCD384F120T300A00
ActiveVicor Corporation
DC-DC 384VIN 12VOUT 300W DEMO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BCD384F120T300A00
ActiveVicor Corporation
DC-DC 384VIN 12VOUT 300W DEMO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BCD384F120T300A00 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 27.7 A |
| Frequency - Switching | 1.95 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | BCM384x120y300A00 |
| Voltage - Input [Max] | 400 VDC |
| Voltage - Input [Min] | 360 V |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 182.55 | |
| 10 | $ 145.01 | |||
| 25 | $ 132.31 | |||
| 50 | $ 124.39 | |||
Description
General part information
BCD384 Series

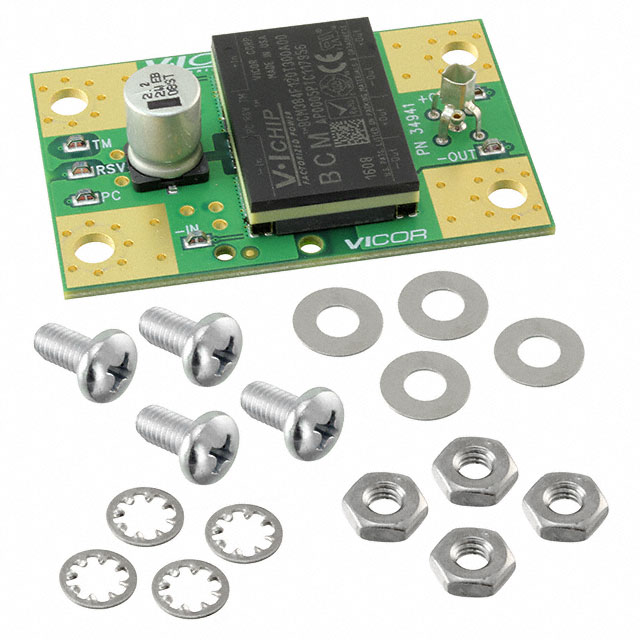

BCM384x120y300A00 VI Chip® BCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
