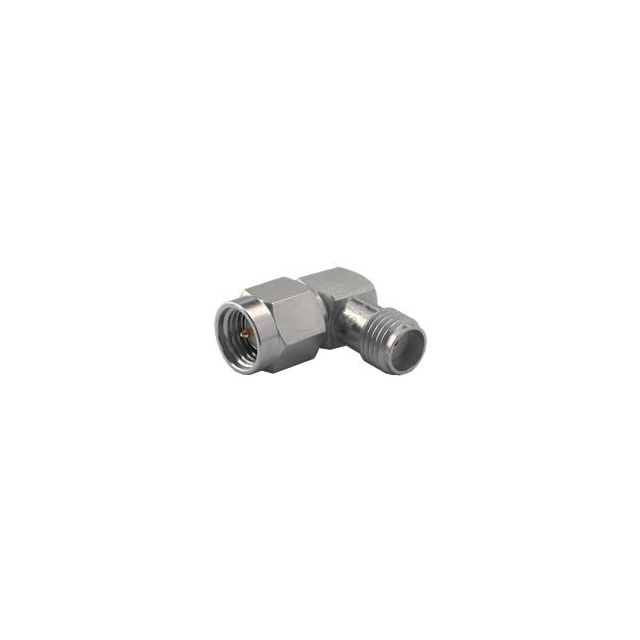

53_SMA-50-0-51/199_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

53_SMA-50-0-51/199_NE

Technical Specifications

Parameters and characteristics for this part

Specification	53_SMA-50-0-51/199_NE

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Right Angle

Part	Mounting Type	Adapter Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Body Finish	Body Material	Convert From (Adapter End)	Mating Cycles	Impedance	Frequency - Max [Max]	Dielectric Material	Style	Adapter Series
Huber+Suhner, Inc. 53_SMA-50-0-2/111_NE	Free Hanging (In-Line) Right Angle	Plug to Jack	Beryllium Copper	-65 ░C	165 °C	Same Series	Female Socket SMA Jack	Gold	Gold	Beryllium Copper	SMA Plug Male Pin	500	50 Ohms	18 GHz	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Right Angle	SMA to SMA
Huber+Suhner, Inc. 53_SMA-50-0-51/199_NE	Free Hanging (In-Line) Right Angle	Plug to Jack	Beryllium Copper	-65 ░C	165 °C	Same Series	Male Pin SMA Plug	Gold		Stainless Steel	Female Socket SMA Jack	500	50 Ohms	18 GHz	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Right Angle	SMA to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
